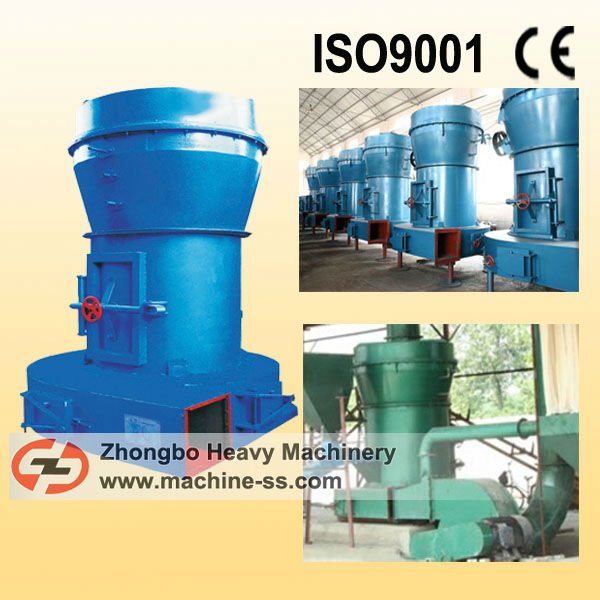

phosphorite ore grinding mill

ore grinding mill feature:, 1.lower energy consumption, 2.smaller land,smaller noise,less dust, 3.higher efficiency - details see: https://www.machineto.com/phosphorite-ore-grinding-mill-10314499

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):50kw
Capacity(t/h):1-15	Place of Origin:Jiangsu China (Mainland)	Brand Name:Zhongbo	Model Number:3R,4R,5R
Certification:BV	Warranty:1year	After-sales Service Provided:Engineers available to service machinery overseas	Application:various ore
Certificate:ISO9001-2000,CE.CCC	Installation:Under engineer guide	Guarantee:1year	Color:As reqyest

I.grinder machine raymond power mill Introduction

Raymond Roller Millisapplicable to the grinding and processing of more than 280 kinds of non-flammable and

non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

II.grinder machine raymond power mill Structure

Raymond Roller Mill is made up of the Mainframe, Separator, Pipeline System, Air Blower, Jaw Crusher, Hopper Elevator, Electromagnetic Vibrating Feeder, and Electric Control Motor and so on (for details see underlying graph of installation)

III.grinder machine raymond power mill Work principle

When it is put into use, the materials to be grinded are put into the main frame through the feed-in bin on the side cover. Then it revolves round the vertical axis line by the milling roller hung on the star rack. With the centrifugal force by rotation, milling roller wings outside and presses fast on milling rings to make relieving tool carry materials between milling roller and ring, thus the materials are crushed by the rolling and milling of the milling roller.

IV.grinder machine raymond power mill Feature

1.Three-dimensional structure , land-saving, easy to be a whole set
2.The screen-passing rate can reach to 99%
3.The transmission is steady and reliable;
4.Centralized control for the electric system, convenient to operate

V. grinder machine raymond power mill Technical parameters

model	CGXM-A	CGXM-B
Feeding size(mm)	5-8	5-8
Discharge size(mm)	0.02-0.008(600-1350meshes)	0.02-0.008(600-1350meshes)
Rotation speed of central axis (mm)	190	160
Motor power	22.5	48
LxWxH(mm)	6800×4500×5800	7200×4800×6200
Weight(Kg)	3100	4100
Rated Voltage(V)	380V	380V
Rated Frequency(HZ)	50HZ	50HZ
