Pellet press/Taper-shaper roller series flat-die pellet mills specially for pellets, brick, briquettes making. - details see: https://www.machineto.com/pellet-press-wood-pellet-press-pellet-press-10346182

Pellet press/Wood pelletizing machine/Wood granulator/Wood pellet plant/Wood pellet press/pellet press/Wood pellet mill/pell mill/wood pellet press/pellet press/wood pellet machine/pellet machine/wood pelletizer/pelletizer/wood pelletizing machine/pelletizing machine

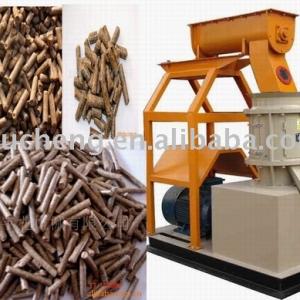

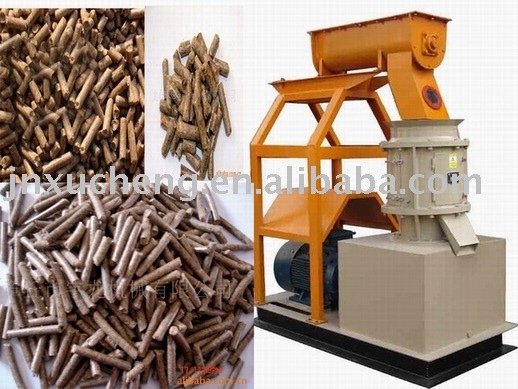

Our company has introduced into Germanic advanced pellet pressing technology. we have successfully invented SkJ-3-4 series Taper-shaper roller series flat-die pellet mills specially for pellets, brick, briquettes making.

Application scope:

wood pellet mill mainly applicable to crude fiber granulation, such as : sawdust, cotton stalk, cotton seed hull, weeds and all kinds of crop straw, home wastage, the worn out plastic and the factory reject, the material of low adhesion rate, difficult to forming . It also can be applied to biological fertilizer, organic fertilizer, compound fertilizer, compound fertilizer low temperature pelleting.

Characteristic:

1.The roller adopts taper-shaper to make both ends line-speed consistent to die-inner and to die-outer, so it avoids dislocation friction between rollers and dies, so that the resistance is reduced, accordingly the energy consumption

reduced, dies lifetime is enlarged.

2.Press rollers are setting uniformly, working smoothly. the press district is increased, so the output is improved.

3.This type compression formation is varied, round bar, brick, pellet, only exchange the die, adopting to different materials to achieve maximum effectiveness.

Model	Output (Kg/h)	Power KW	Pellet specification (mm)
SKJ2	100-160	15	2-15
SKJ2	160-260	15-18.5
SKJ2	300-500	30
SKJ3	400-600	37
SKJ3	500-800	55
SKJ3	1000-2000	90
SKJ3	600-1000	55
SKJ3	2000-3000	130-160	Round bar(6-250
SKJ4	3000-4000	280-320
