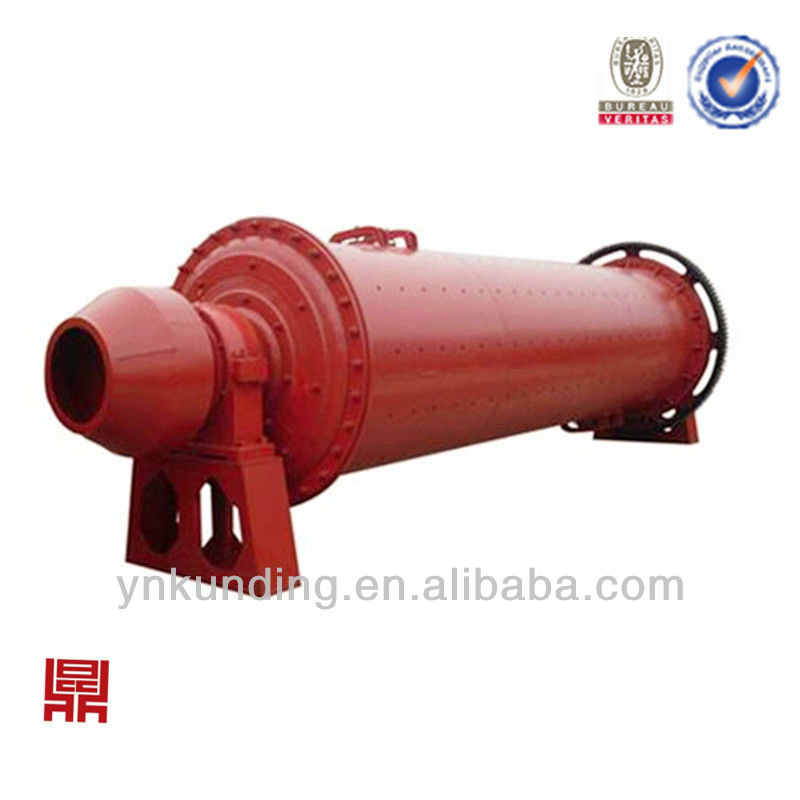

over flow rolling bearing mine industry ball mill

ball mill features:, 1.feeding size: less than 25mm, 2.capacity:0.65-130t/h, 3.outputs: powder and granule, 4.application: grind - details see: https://www.machineto.com/over-flow-rolling-bearing-mine-industry-ball-mill-10314406

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18500
Capacity(t/h):0.65-2	Place of Origin:Yunnan China (Mainland)	Brand Name:KDM	Model Number:900*1800
Dimension(LWH):diameter900*1800mm	Weight:4.6t	Certification:ISO,CE	Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseas	diameter of the ball mill:900	length of the ball mill:1800	rotational speed(r/min):36-38
ball load(t):1.5	feeding size(mm):less than 25	discharge size(mm):0.075-0.89	motor power(kw):18.5
weight(t):4.6	material:steel

over flow rolling bearing mine industry ball mill

contact supplier for over flow rolling bearing mine industry ball mill

General introduction for ball mill:

This is a key equipment to grind the crushed materials, and it is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the cement mill can grind various ores and other materials with dry type and wet type.

Operating Principle for ball bill

Ball mill consists of a horizontal cylindrical shell, provided with renewable wearing liners and grinding medium—steel balls.In the low-speed rotating shell, steel balls cling to the liner under the influence of inertia and friction. Then they will be taken to a certain height and thrown down as a result of the gravity and centrifugal force. In this process, the materials continuously dropped from one end of the cylinder will be smashed by the balls. In addition, both the balls and materials will be rolling and sliding irregularly together. Therefore, the materials will become finer and finer.

Features and advantages for ball mill

This cement ball mill changes in the structure of the traditional mill,so that the body, chassis integration can be

installed on the basis of a plane, the main bearing a double row-aligning roller bearings, can reduce energy consumption 30%.liaoduo small increase, the crease in handing capacity of 15-20%.

Besides, It have the stable structure, high capacity, easy maintenance, reliable performance,etc.And the cast steel,gear rims, main bearings can be repaired for free in two years under right using

Technical parameters of ball mill
