1),Hot sell in southeast asia and middle east., 2),ISO9001-2008 approved., 3),40 years experiences, 4),Patent no: 882190904 - details see: https://www.machineto.com/our-patented-product-mine-ball-mill-10314004

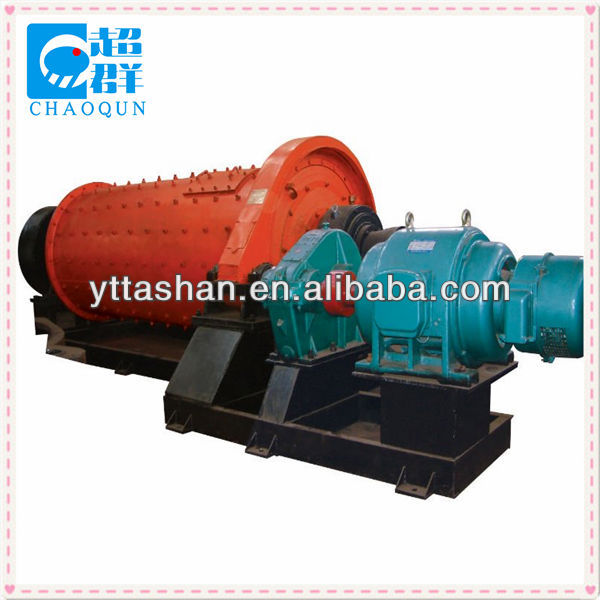

Energy-Saving Ball Mill Application:

Energy-Saving Ball Millare generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Energy-Saving Ball Mill Features:

1) ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

Main technical datas:

Model	Diameter*length of the shell(m)	Revolution of the shell(r/min)	Effective volume(m3)	Capacity(t/h)	Motor	Dimensions of outshine
					Power (KW)	(L×W×H)
ZTMY/G0924	0.9×2.4	40	1.2	1.58-2.86	15	4965×1933×1570
ZTMY/G0930	0.9×3.0		1.5	0.73-3.6	18.5	5610×1968×1570
ZTMY/G1216	1.2×1.6		1.5	0.3-4	18.5	4390×2200×1855
ZTMY/G1220	1.2×2.0	31.3	1.85	0.37-4.9	22	4885×2200×1855
ZTMY/G1224	1.2×2.4		2.2	0.4-5.8	37	5135×2240×1855
ZTMY/G1228	1.2×2.8		2.6	0.5-6.9	37	6008×2530×1855
ZTMY/G1236	1.2×3.6	31.3	3.2	0.6-7.9	45	6673×2530×1855
ZTMY/G1240	1.2×4.0		3.7	0.7-9	45	7346×2530×1855
ZTMY/G1245	1.2×4.5		4.2	0.8-9.8	75	7846×2530×1855
ZTMY/G1530	1.5×3.0	30.5	4.5	2.8-9	75	7046×3098×2490
ZTMY/G1536	1.5×3.6		5.5	3.5-11.1	80	7862×3147×2490
ZTMY/G18330	1.83×3.0	27	6.9	4-20	130	7862×3412×3070
ZTMY/G18335	1.83×3.5		8.2	4.9-26.9	130	8062×3412×3070
ZTMY/G18340	1.83×4.0		9.1	5.9-32.5	155	8662×3412×3070
ZTMY/G18364	1.83×6.4	27	14.5	12.5-47.8	245	11709×3582×3070
ZTMY/G2118	2.1x1.8	23.9	5.4	4.1-23.4	110	6842×3882×3370
ZTMY/G2124	2.1×2.4	23.9	7.6	5.7-33	130	7442×3882×3370
ZTMY/G2130	2.1×3.0	23.9	9.5	6.7-37.3	155	8132×3932×3370
ZTMY/G2136	2.1×3.6	23.9	11.5	8.1-44.9	180	8752×4047×3370
ZTMY/G2150	2.1×5.0		15.9	11.9-68.8	245	10302×4047×3370
ZTMY/G2160	2.1×6.0	23.9	18.9	13.9-72.8	280	11553×4047×3370
ZTMY/G2430	2.4×3.0	23.4	11.8	7.2-92	260	9728×4905×4320
ZTMY/G2442	2.4×4.2		16.5	11-129	310	10928×5274×4320
ZTMY/G2480	2.4×8.0	23.4	33.2	15-110	500	14358×5274×4320
ZTMY/G2721	2.7×2.1	22.05	10.7	7-84.6	280	8954×5453×4405
ZTMY/G2724	2.7×2.4		12.3	8-96.7	280	9254×5453×4405
ZTMY/G2728	2.7×2.8	20.7	14.3	9.3-112.8	320	9474×5543×4405

Working principle:

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel.There are two chambers and grids. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls.

The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.

After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging outlet. Then the whole grinding process ends
