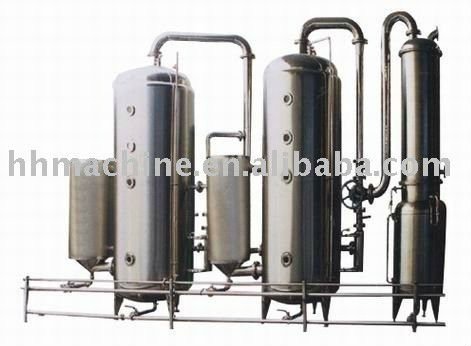

One effect external loop vacuum concentration device

(1)material:stainless steel(2)usage: Meat, Candy, Beverage, Porridge, Milk, etc. - details see: https://www.machineto.com/one-effect-external-loop-vacuum-concentration-device-10022278

Processing:Concentrator,Boiling,Cooking and Frying Machine	Place of Origin:Zhejiang China (Mainland)	Brand Name:HHCM	Model Number:HHCM
Processing Types:Carbonated Beverage,Liquid Product	application:Emulsifier

One effect external loop vacuum concentration device

contact supplier for One effect external loop vacuum concentration device

The equipment has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the <Technology Specifications for Steel Welded Vessel

The standard specification from 100L to 7000L and order-design or order-manufacture are all available.

The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. At the tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the rmometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.

Technical Parameters:

Specification	300	500	700	1000
Evaporation Capacity (kg/H)	70	120	145	195
Capacity (L)	300	500	700	1000
Jacketed Layer Pressure (Moa)	0.09
Vacuum Degree (mmHg)	500-620
Heating Area	1.3	1.6	2	2.8
Cooling Area	2.4	3	3.5	4
Outside Size (mm)	190011002300	203012002500	210013002600	233515202765
