PLC Control Systerm , Esy to operation and maintance , we can supply IQ OQ PQ Documents and CE Certification - details see: https://www.machineto.com/njp3200-automatic-capsule-filling-machine-10303658

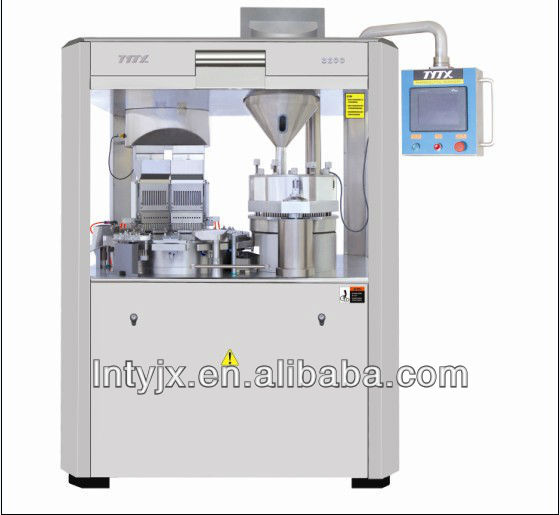

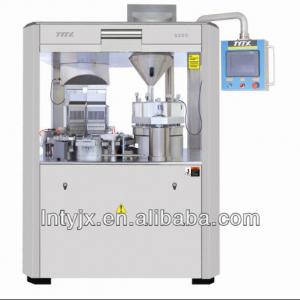

Thisis a newly created full-automatic closed intermittent capsule filling machine with multiple tamping stations.It completes the following process:feeding capsule,detaching capsule, filling, ejecting defective capsule,closing capsule, discharging finished capsule automatically.

This machine can be equipped with vacuumm loader for capsules and powder, which reduces the wokers cost, and all the operation is conducted on the touch screen, which is a highly automation machine of water, electricity and pneumatic.

1. Independentcontrol systerm , which make the main moter and the mechanical systerm is not mutual interference each other .
2. There is bigresistancewhen the filling pole running up and down .to ruduce this resistance ,we adopt counterweightassistant.guaranteeing the machine running safely.
3. conditioning site adopt clear handspike enter into the lower module derectly and with the air . to make the power which is in the upper and lower module can be cleared in time . avoide the left powder influence the next station .
4. To increase the transmission torquemoment ,increase the diameter of the principal axis , to make sure the transmission more stablely and asol increasing load resistor ability.
5. Die hole array with Back and forth derangement ,which is greatly increase the powder filling precision ,make sure the filling capcity is more exactly .
6. Adopt multiholedoctor brade , make the podwer can be dispersed equably on the dosing disc , which is more favorable for the capacity exactly.
7. New stucture twelve state totally closed batch type rotating floor .upper and lower module uni-directional running is safe and reliable . totally closed structure make the products prevent the lubrication oil from pullution .accordong with GMP.
8. Simplify quibcunx leveling stucture and upper base . which is convience to cleaning the spread powder and increasing the work efficiency .
9. Batch gas auxiliary system for exhausting capsule , avoid exhaust long time and without a break .

10.Accurate orientation,Capsule vacuum positioned mechanism to make the capsule upload percentage over 99%.

11.Freely adjusting dosage,easy speed selection and closed capsule length adjustment.

12.PLC program control panel with LCD.touch screen operation, and monitoring function.

13.Displaying in-time speed and accumulative output.

14.Auto-trouble shooting,lack of material, lack of capsule, block in material channel and other mechanical trouble, make alarm and stop automatically.

15.Electrical Appliance control system approved to CE, and international standard.

16.Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.

17.Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.

18.working station cam runs under the good lubricating condition, extends the operating life of change parts.cam is made by USA HASS CNCand Germany DMGmachine.

Model	NJP800	NJP1200	NJP1500		NJP2200	NJP3200
Output	48000	72000		90000	130000	192000
No. of dieorifice	6	9	12(double line)		19(double line)	23(double line)
Filling percentage	≥ 99%
Power (kw)	380V 50Hz 3KW		380V50Hz5KW			380V.50Hz6KW
Vacuum	27m³/h0.02~-0.08Mpa		110m³/h -0.08-0.04Mpa
Noise emission	< 73dB(A)
Dimensions	800*750*1950		1220*960*2000		1200*1070*2100	1420*1180*2150
Weight (kg)	850Kg		1400Kg		1500Kg	2000Kg

Main Technical Data
