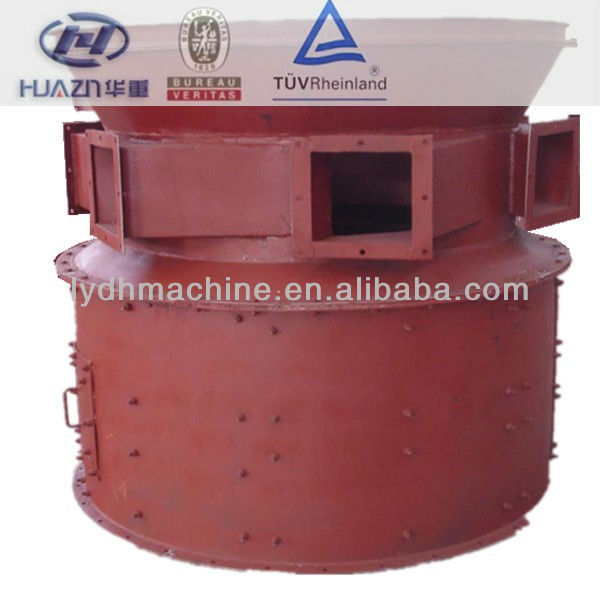

Powder Selecting Machine

Product Overview:

Powder Selecting Machine is the key equipment which ensures the sand quality during dry style of sand making. It is mainly composed by motor, fan, cyclone, selecting chamber, distributer and main air inlet pipe. The proportion of fine granularity of final product can be adjusted by speed adjustment. The speed is more higher, the selected fine granularity is more, which means the powder percentage in sand is smaller. Otherwise, the powder percentage in sand is bigger.

Technical Parameter:

Model		NHXA-400	NHXA-500	NHXA-600	NHXA-700	NHXA-800
Throughput (t/h)		24-50	30-70	45-90	55-110	70-140
Fine capacity (t/h)		16-20	21-28	30-36	35-45	45-65
Product granularity% (80um)		8-10	8-10	8-10	8-10	8-10
Rotate speed of main shaft (r/min)		190-380	190-380	150-350	150-320	130-300
Motor	Model	YCTL200-4B	YCTL225-4B	YVP180L	YVP200L	YVP225M
	Power (kw)	7.5	15	22	30	45
Fan	Model	4-72NO8C	4-72NO8C	4-72NO10C	4-72NO12C	4-72NO16B
	Wind volume	22435	29000	34860	67645	99493
	Wind pressure	2.4	2.8	2.37	2.47	2.45
	Power (kw)	22	37	45	75	110

Remarks: The output and degree of fineness is related to productive technology and material property.

To give you a responsible quotation, you can inform us the following information:

1). What's the material you are going to deal with?

2). What's the granularity of the material?

3). What's the granularity of the final products are you going to achive?

4). What's the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.
