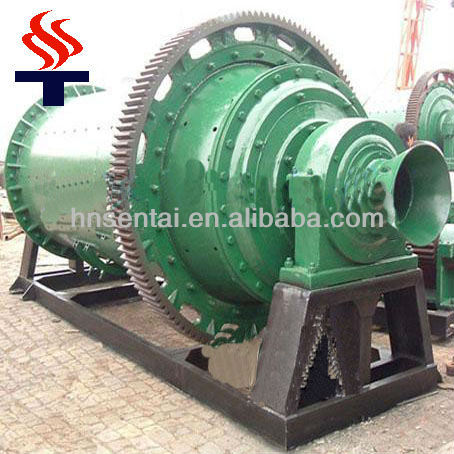

New type and design ball mill for sale

1. Failure predication of new ball mill

Production new ball mill many years, we really know how to predicate failure. If new ball mill so something bad, its efficiency will be decline soon. When bearings heating, check whether the new ball mill lack of oil. And if new ball mill have some problem serious, please contact manufactory.

2. Structural of new ball mill

New ball mill is consists of five parts. These five is new ball mill’s everything. Any one go wrong, new ball mill will work badly.

Joint feeder of new ball mill

Barrel portion is import for new ball mill

Main bearing part of the new ball mill

Drive part is used for transmit wet material to drying plant.

Discharging part convey finished product out of new ball mill

3. Product characteristics of new ball mill

New ball mill is more advanced than other ball mills. The new ball mill works with water, it has good tightness. But finished product from new ball mill in not wet. Inside new ball mill, it has a drying plant at the tail. Wet product from it will be OK. So this type new ball mill is more and more popular.

4. Parameters of new ball mill

Model	Shell rotation speed (r/min)	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
Ø900*1800	36--38	1.5	<=20	0.075-0.89	0.65-2	18.5	5.5
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	6.7
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	16.8
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	25.8
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	29
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	35.5
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	43
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	43.8
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34.8
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	38
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	56.6
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	51.8
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	60
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	62
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	64.8
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	380	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	480	102
Ø3200*4500	18	65	<=25	0.074-0.4	25-130	800	137
Ø3600*4500	17	90	<=25	0.074-0.4	-----	850	158
Ø3600*6000	17	110	<=25	0.074-0.4	-----	1250	175

If you interested in new ball mill, please mail us. We will offer you with more parameters about new ball mill.
