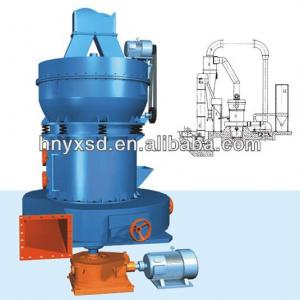

New designed vertical low cost Raymond mill

1.Raymond mill, 2.high quality and reasonable price, 3.stable structure, 4.easy maintain, 5.ISO/CE - details see: https://www.machineto.com/new-designed-vertical-low-cost-raymond-mill-10313949

Condition:New	Type:Raymond Mill,Mill	Motor Type:AC Motor	Power(W):as the type of the model
Capacity(t/h):0.4-4.5	Place of Origin:Henan China (Mainland)	Brand Name:SD	Model Number:3R2115 3R2615 3R2715 4R3016 4R3216
Dimension(LWH):as the type of the model	Weight:as the type of the model	Certification:CE SGS ISO9001:2000	Warranty:1 year
After-sales Service Provided:Overseas service center available	Application:Ore	Name:New designed vertical low cost Raymond mill

Raymond mill produced by our company is mainly used to grind non-inflammable and non-explosive materials with Mohs hardness below 7 and moisture content below 6% such as barite, calcite, potash feldspar, talcum, marble, limestone, ceramic, glass, etc for ultra-fine powder processing of 280 materials Raymond grinder can be used in mining, chemical industry, construction materials, metallurgy and so on. The granularity of the final products can be adjusted freely from 100 mesh to 425 mesh.

Working Principle of New designed vertical low cost Raymond mill
Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers rotate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.

technical parametersof New designed vertical low cost Raymond mill

type	roller no.	roller size(L×H)(mm)	ringinside diameter and height (mm)	max.feed size(mm)	output granular(mm)	capacity (t/h)	main motor power(kw)	weight (t)	overall dimension(mm)
3R2115	3	φ210×150	630×150	15	0.2-0.044	0.4-1.6	15	3.6	4500×2800×5800
3R2615	3	φ260×150	780×150	20	0.2-0.044	0.8-2.5	18.5	4.2	5650×3305×5950
3R2715	3	φ270×150	830×150	20	0.2-0.044	0.9-2.8	22	4.8	5600×3400×5900
4R3016	4	φ300×160	880×160	20	0.2-0.044	1.2-3.5	30	8.5	6500×4100×5200
4R3216	4	φ320×160	970×160	25	0.2-0.044	1.8-4.5	37	15	9900×5800×10580
