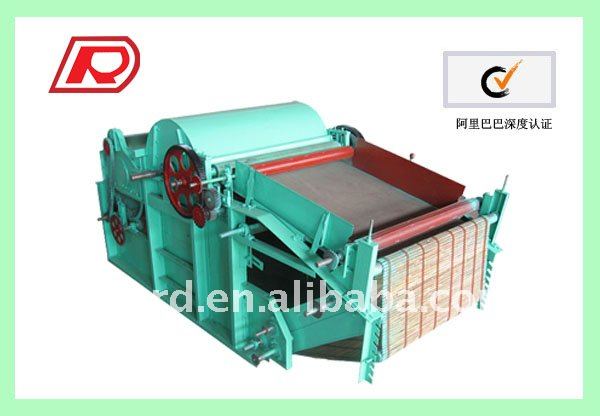

new design fibre/cotton/textile waste opening machine
Place of Origin:Shandong China (Mainland) | Brand Name:Rongda | Model Number:GM400 | colour:green,white or any colour |
certification:alibaba depth authentication | product:cotton fibre |
new design fibre/cotton/textile waste opening machine
1.Application:
recycling,cleaning cotton,fiber crops,cloth leftover,chemical fiber and other kinds of fibers.
2.characteristics:
1)New rack structure is scientific, reasonable and safe, and the performance is reliable; stable operation makes the machine easy to handle.
2)With good loosening and cleaning effects, and the machine enjoys high output, low loss, and low noise.
3)Adopting oblique gear speed reducer makes the good adaptability during the long time working, so the machine will not heat easily and has a longer lifespan.
4)Equipped with the new designed rack, with the loosing and recycling combined working pattern, the machine reduces the damage to fiber, and protects the length of fiber.
5)Special structure roller and arc-shaped cotton feeding board also help to longer lifespan of the machine.
6)Gaps in the feeding part are easy to adjust, which makes the device in the feeding part is easier to maintain.
7)With various feeding types such as thicker roller, 4 roller and gear roller, you could choose freely according to different materials.
3.Main technical parameters
Roller diameter | 400mm |
Dimension | 2250*1500*1150mm |
Weight | 700kg |
Motor power | 15~22KW |
Fan power | 1.5kw |
dust cage diameter | 500mm |
Output | 130-212kg/h |
Rotating speed | 1600r/m |
Model | GM600 iron | GM600 wood |
Output | 130-210kg/h | 130-210kg/h |
Roller | dia600*1000mm | dia600*1000mm |
Dust cage | dia500*1000mm | dia500*1000mm |
Rolle rotating speed | 1200r/m | 1100r/m |
Motor power | 22kw | 18-22kw |
Fan | 1.5kw | 1.5kw |
Weight | 1003kg | 790k |
Dimension | 2550*1500*1300mm | 2800 |
Packaging Detail:naked or according to customer's requirements |
Delivery Detail:within 20days |
