ball mill advantages:, 1. High efficiency, 2.Easy maintenance, 3.Best price - details see: https://www.machineto.com/new-ball-mill-10314036

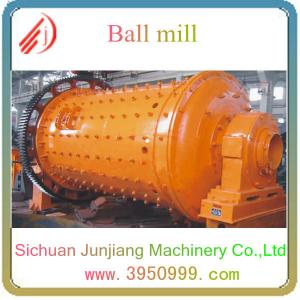

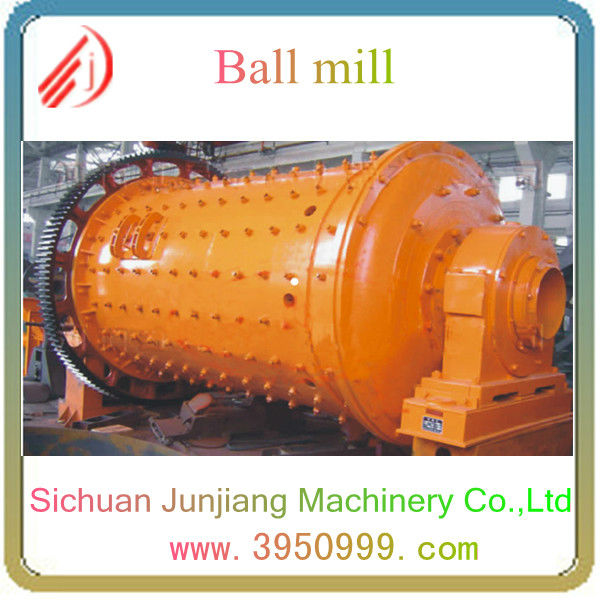

Ball Mill Introduction:

Application:

Ball Mill is the key equipment to grand all kinds of ores and other materials after crushing which is widely use in industries of cement, silicate products, new building materials, refractory materials, fertilizer,black and nonferrous metal separating,glass ceramics etc.It can do dry and wet grinding towards all kind of ores and other grind-able materials.

Ball Mill Working Principle:

Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The bucket rotation by the motor force the steel balls to a certain height and impact and grind the materials. The materials are discharged through the discharging board. Then the grinding process is finished.

Ball Mill parameters:

Model	Bucket speed (r/min)	Weight of Ball (t)	Feeding size (mm)	Discharge size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
2400×4500	20.7	48	≤25	0.074-0.4	12-90	430	102

Port of Shipment for the Ball Mill:

Our factory is located in China's southwest Sichuan Province, Luzhou, Chengdu, Chongqing as our nearest port. We are available of all ports in China.

We are warmly welcome you to visit our factory!
