Ball Mill, 1.Mn linning,durable, 2.whole base support, easy to installation, 3.special design, asving energy about 30%, 4.ISO - details see: https://www.machineto.com/new-1500-4500-ball-mill-glass-grinding-ball-mill-10127088

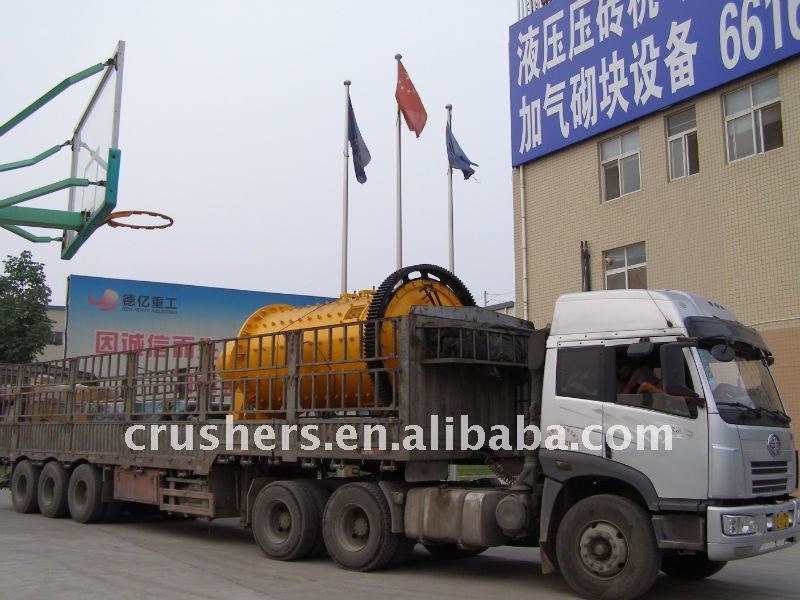

Ball mill
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

Working Principle of ball mill:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical parameter of ball mill:

Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	size of outputting feed (mm)	Production (t/h)	Power (kW)	Weight (t)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56
Φ2200×9500	21	38	≤25	0.074-0.4	18-35	475	62

Notice: Any change of Ball Mill technical data shall not be advised additional.
