Width of products: 2.3-2.5m, Thickness of products: 5-15mm, Output: 7-8m/min - details see: https://www.machineto.com/needle-punching-machine-10279832

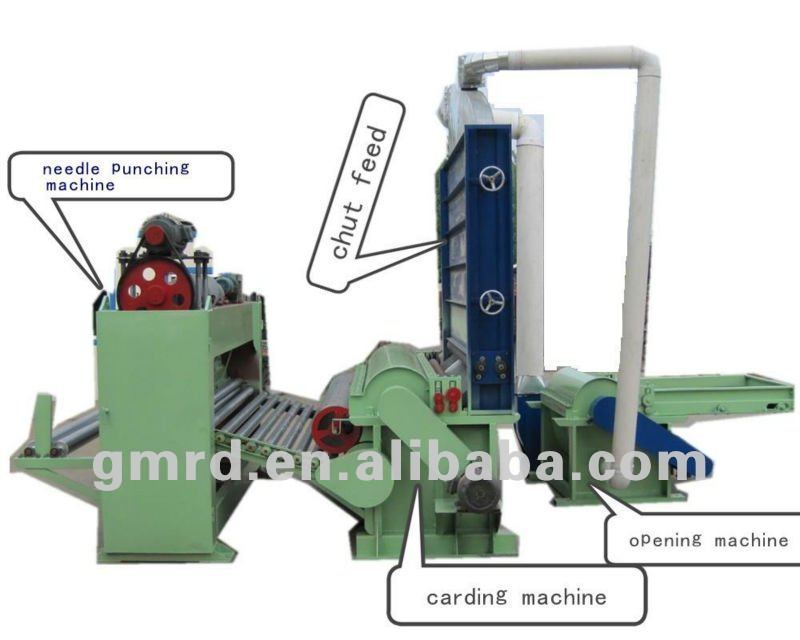

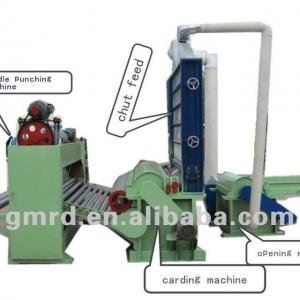

• characteristic of Needle loom Cotton Machine

Needle-punched cotton machine can be fleeciness fiber, cotton to comb cotton, spread nets, acupuncture, strengthening become needle-punched cotton, insulating felt, raw materials of greenhouse, shoes, mattresses, sofa cushion, car seat rug, chemical product and different specification product.

• Main Technical data of Needle loom Cotton Machine

Main Technical Data of opening Machine
Output	130-200 kg /hr
Diameter of cylinder	400mm
Speed	1400r/min
Main motor	7.5kw
Reducer	1.1 kw
weight	500 kg
Size	2040*1500*1030mm

Main Technical Data of Carding Machine
Diameter of cylinder	450mm
Speed	1100 r/min
Main motor	7.5kw
Reducer	1.1kw
Size of one machine	2900mm*1100mm*1250mm
Weight	about 1400 kg

Main Technical Data of Chute feed
Fan	4 kw
Size	1850*320*2600mm
Weight	about 100 kg

Main Technical Data of needle loom
Width of products	2.3-2.5m
Thickness of products	5-15mm
Output	7-8m/min 500-1500GSM
Needling Frequency	100-650 times/min
Needling Travel	35-65mm
Number of Needle	5000 pcs(first) / 6000 pcs(second)
Main motor	7.5kw
Reducer	1.5kw
Size of one machine	3000mm*700mm*2300mm
Weight	about 1800 kg
