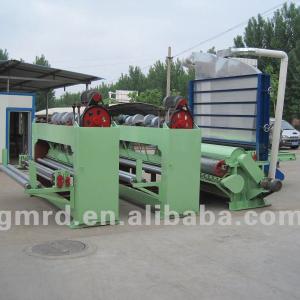

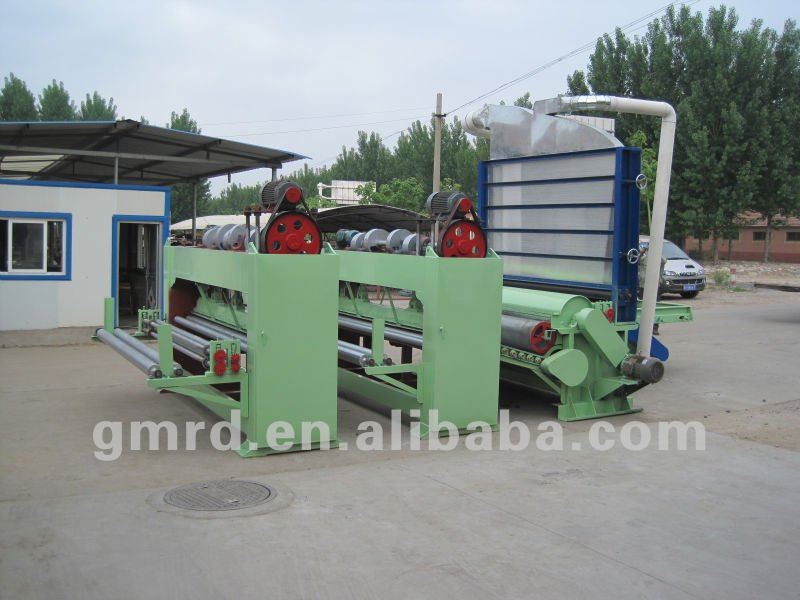

Needle Loom Machine for Non Woven Production
| Place of Origin:Shandong China (Mainland) | Brand Name:RD | Model Number:GMZ-2600 | Color:any color |
| Certificate:CE certificate | Working Width:2.6M | Power:28KW |
- characteristic of Needle loom Cotton Machine
We provide various kinds of Nonwovens can be used in various fields:
--Medical Protect
Surgical gown&cap, patient clothes, bed sheet,
pillowcovers,face mask,glover,diaper,shoe cover,curtains, etc.
--Sanitary and Health:
Baby diaper,feminine hygiene,hygiene pad,baby training trouser,incontinence pads.etc,
Cover of the high absorbent material after hydrophilic treatment,diaper edge for preventing
leaking.diaper backing after composite with other material etc
--Packing and Industry:
CD/DVD case,Shopping bag, tarpauins, tents, bag for rice/sugar, luggage, vacuum cleaner bag, buff pad,
interlining and cloth, shoulder padding etc
--Argriculture:
Cover tree, cope cover , garden cover ect
- Main Technical data of Needle loom Cotton Machine
Main Technical Data of opening Machine | |
| Output | 130-200 kg /hr |
| Diameter of cylinder | 400mm |
| Speed | 1400r/min |
| Main motor | 7.5kw |
| Reducer | 1.1 kw |
| weight | 500 kg |
| Size | 2040*1500*1030mm |
Main Technical Data of Carding Machine | |
| Diameter of cylinder | 450mm |
| Speed | 1100 r/min |
| Main motor | 7.5kw |
| Reducer | 1.1kw |
| Size of one machine | 2900mm*1100mm*1250mm |
| Weight | about 1400 kg |
Main Technical Data of Chute feed | |
| Fan | 4 kw |
| Size | 1850*320*2600mm |
| Weight | about 100 kg |
Main Technical Data of needle loom | |
| Width of products | 2.3-2.5m |
| Thickness of products | 5-15mm |
| Output | 7-8m/min 500-1500GSM |
| Needling Frequency | 100-650 times/min |
| Needling Travel | 35-65mm |
| Number of Needle | 5000 pcs(first) / 6000 pcs(second) |
| Main motor | 7.5kw |
| Reducer | 1.5kw |
| Size of one machine | 3000mm*700mm*2300mm |
| Weight | about 1800 kg |
| Packaging Detail:Seaworthy Packing |
| Delivery Detail:within 10 days |
