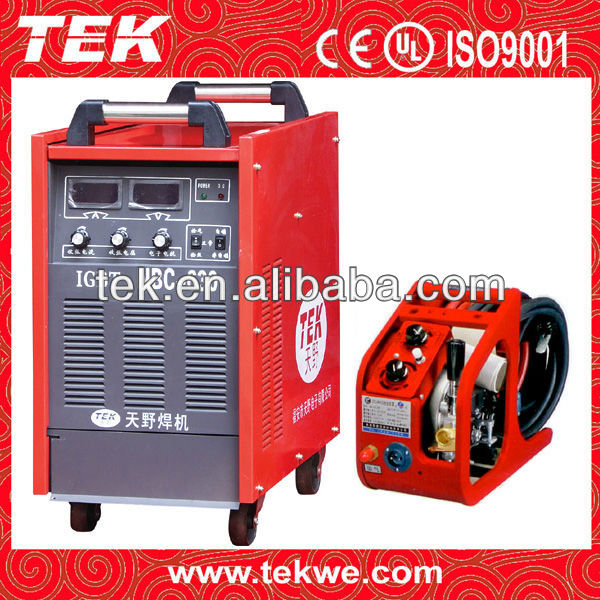

NBC-630 IGBT Gas-shield Welding Machine
NBC-630 IGBT Gas-shield Welding Machine, 1.Energy-saving, 2.Best prices, 3.Long-service life, 4.Environmen - details see: https://www.machineto.com/nbc-630-igbt-gas-shield-welding-machine-10136652
| Condition:New | Place of Origin:Fujian China (Mainland) | Brand Name:TEK | Model Number:NBC-630 IGBT |
| Wire Feeding Speed:3-15m/min | Dimensions:680*380*680mm | Weight:81 | Usage:Stainless steel,Low alloy steel,Carbon steel |
| Voltage:380V | Power(W):34600 | Certification:CE,ISO9002 | Warranty:1 Year |
| Color:Red or Others | Frequency:50Hz/60HZ | Certificate:CE,CCC,ISO9001...... |
NBC-630 IGBT Gas-shield Welding Machine
1. IGBT technology with stable output,excellent ability of balance voltage to 15%.
2.Electronic reactor control brings stable welding,little sparks,deep pool and good form
3. Be able to weld with core wire and flux wire
4. High weling speed, high arcing success rate
5. Be able to clean molten drop after welding,so as to ensure high successful rate of arc-startin
6. Suitable for carbon steel, alloy steel, soft steel, etc, and various wi
7. Little spatter, uniform weling pool, good welding shape
| TECHNICAL SPECIFICATIONS | |
| MODEL | NBC-630 IGBT |
| Power voltage frequency | AC. (three phase)220V~415V ±15% 50Hz-60Hz |
| Input current | 52.6A |
| Power capacity | 34.6KW |
| Rated output current | 80- 630A |
| Output voltage | 13-44V |
| Duty cycle | 60% |
| Power factor | 0.93 |
| Efficiency | 85 |
| Insulation class | B |
| Type of wire feeder | Two parts, Four rolls |
| Overall dimention | 680*380*680mm |
| Protection class of case | IP21 |
| Feeding speed | 3-15m/min |
| Pastflow time | 1±0.5 |
| Diameter of coil | 270mm |
| Weight | 61 |
| Length of earth cable | more than 6m |
| Packaging Detail:Carton, Wooden Pallet or According To Customers Request |
| Delivery Detail:15days |
