Natural gypsum powder machine with vertical mill

Natural gypsum powder machine:, 1.Experience:14 years;, 2.Guarantee:5 years;, 3.Checking:SGS CIQ;, 4.Certification:CE&ISO. - details see: https://www.machineto.com/natural-gypsum-powder-machine-with-vertical-mill-10086759

Condition:New	Application:Produce gypsum powder	Automatic Grade:Automatic	Production Capacity:15000 to 500000 tons
Place of Origin:Hebei China (Mainland)	Brand Name:RUBIN	Model Number:RB-15000	Voltage:According to the requirement
Power(W):According the the capacity	Dimension(LWH):According the the capacity	Weight:According the the capacity	Features:Can be customized according to customer requirements
Certification:ISO&CE	Warranty:5 years guarantee	After-sales Service Provided:Engineers available to service machinery overseas	Name:Natural gypsum powder machine
Capacity:15000 to 500000 tons per year	Mainly raw materials:Natural gypsum rock	Calcination system:Boiling furnace	Gypsum powder fineness:≥100 mesh
Flexural strength:≥1.8Mpa	The strength of anti-pressure:≥3.0 Mpa	The initial setting time:3-8 min (adjustable)	The final setting time:6-15 min (adjustable)
Consistency:65%-75% (adjustable)

Annual capactiy: 15000 to 500000 tons

Guarantee: 5 years and forever after sales service

Style: calciner( fluidized bed furnace)

Experience: 14 full years till 2013

Export: we already build in Iran, Pakistan, India, Ethiopian, Uzbekistan, Egypt, Saudi Arabia, ect more than 15 countries.

1.Company profile :

1.Our company is a professional manufacturer and exporter of gypsum powder production line company;

2.14 years experience;

3. Excellent idea; excellent team; quality service;

4. Products are exported to many countries and areas such as Russia, Middle east, Ethiopia, South Africa, India, Pakistan, South America etc.

5. ISO9001, CE.

2. The brief introduction of the production.

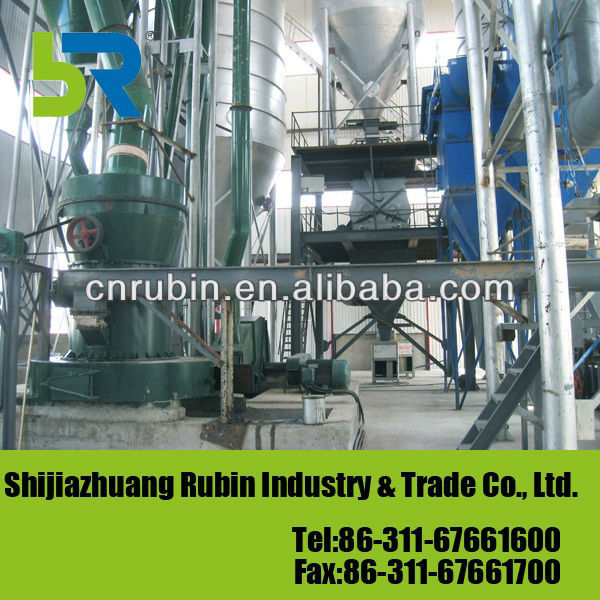

The crusher breaks the big sized gypsum ore into small ones with 25mm in diameter. After storing and

conveying, they are taken into the mill for grinding. Then, the power concentrator carries the gypsum

powders which match to the needed fineness to the calciner for calcining. Others are back to the mill

until it is qualified. In the end, after calcining, the qualified gypsum powder are sent to clinker container

for storing, or are sent to the manufacturing workshops for use.

3. The processing craft

4. The machine parts introduction

5. The electric control system

At present, the electrical control system is using the advanced DCS and also SIMENS PLC, separated

equipment but concentrate control.

According to the requirement of control, it takes SIMENS PLC, industrial control computer and industrial

control configuration software as the core of alarm, monitoring and electrical control. It controls the separate

equipment logically according to the demands of the craft. Through the adaptation of communication module,

it also conveys the electric current, temperature and wind to the superior computer. After analyzing these

parameters which are sent, it will indicate the phenomenon of over current, overload, etc. and set out the

alarm.

6. Manufacturing

7. Packing and Delivery

8. Good relationship customers:

9.workers distribution on site

The Crusher System: 2 person/ day (including the forklift driver

The Mill System: 1 person/ eight hours (that is 3 people/ day)

The Calcine System: 1 person/ eight hours (that is 3 people/ day)

The Heat Supply System: 2 people/eight hours(that is 6 people/day)

Electrical Engineering: 1 person/ day

Machinery Maintenance: 1 person/ day

In total: 16 person

10. The Calculation of the Output

The Time of Production: 300 days/ year×24 hours

11. machine and service

1) The machineguarantee 5 yearsexcept the easy worn parts such as bearings, electric buttons.

2) machine delivery time:2 to 4months after the deposit.

3) payment terms: TT or LC

4) machine installation and commission:2 to 3months when the buyer prepare the installation and commission conditions.

5) we offer engineers train the buyers' worker to operate the machine and after you master the machine then pay us the installation and commission payment.

6) In order to guarantee the machine running, each year we will send engineer to check and development the technology with the buyer.

7) If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
