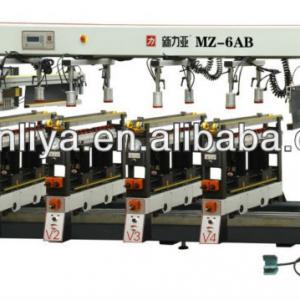

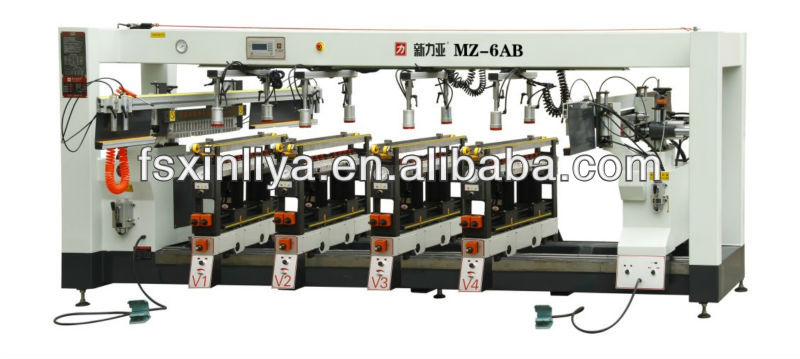

Multi spindle boring machine (six row)

1. Woodworking row drill;, 2. Woodworking boring machinery;, 3. Double Motors Carpentry row drill;, 4. Six-row Drill machin. - details see: https://www.machineto.com/multi-spindle-boring-machine-six-row-10348468

Condition:New	CNC or Not:Normal	Place of Origin:Guangdong China (Mainland)	Brand Name:Xin Liya
Model Number:MZ-6AB	Dimension(LWH):430024001200mm	Certification:ISO 9000	Max boring dia:max=35mm (Singfe drilf) d=13mm (Multi drilf)
Max boring depth:Hmax=60mm	Max procelling pitch:3300*672mm	Min procelling pitch:130*32mm	Numbers of drilling axis:212+118Bit
Distance between spindle:2780mm	Air pressure:0.5-0.6Mpa	Installed Power:15Kw	Spindle speed:2840rpm
Weight of machine:2500kg

contact supplier for Multi spindle boring machine (six row)

Characters:

1. Using the brand's touch screen, PLC industrial control system, powerful functions;

2. Drill bit drilling in large scope, all drilling use quick joints, convenient and quick;

3. Drilling depth, drilling distance all adopt photoelectric induction switch (optional), fast, accurate positioning;

4. It is use imported famous brand multi-drill, motor, linear guide (optional), durable;

5. Machine tool parts, choose high quality steel, the heat treatment of high strength never deformation.

Feature:

1. The imported original drill row, famous and superior original electric appliance;

2. The machine tool elements choose the superior steel material. They have been heat-treated with high intensity and eternal non-deformation;

3. The kinetic components choose the high-grade anti-wear materials with fine durability;

4. Size positioning, prompt; accurate and convenient operatio;

Application:

Six-row woodworking Drilling Machinery mainly use for drilling holes of the solid wood,flakeboard,medium density fiberboard, used for produce cabinet, kitchen and mdf furniture.
