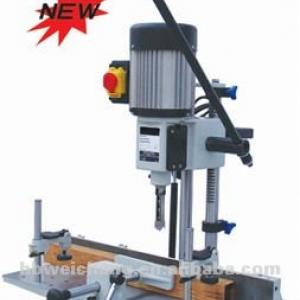

MS3824 Woodworking mortiser

1.Portable Woodworking mortiser, 2.High working efficiency and low cost, 3.Lightweight and easy operation - details see: https://www.machineto.com/ms3824-woodworking-mortiser-10342788
Place of Origin:Shandong China (Mainland)Brand Name:WEICHANGModel Number:MS3824Chisel capacity:6-26mm(1/4''-1'')
Max.Mortising Depth:76mmOver height:1050mmspindle speed:1400rpmMax.Chisel Travel:165mm
Chisel to Table(max):190mmSpindle to Fence(max):75mm
MS3824 Woodworking mortiser
contact supplier for MS3824 Woodworking mortiser


ModelMS3824
Motor power1hp/0.75kw
Spindle speed1400rpm
Chisel capacity6-26mm(1/4''-1'')
Max.Mortising Depth76mm(3'')
Max.Chisel Travel165mm
Chuck capacity3-16mm
Table movement lateral370mm
Table movement longitudinal100mm
Table size650*310mm
Base size450*280mm
Fence tilt0
Chisel to Table(max)190mm
Spindle to Fence(max)75mm
Over height1050mm
Main machine dimension760*560*720mm
Stand dimension500x400x630mm
G.W/N.W of machine98kg/70kg
G.W/N.W of stand18kg/16kg
Units/20' Container90
MS3824 Woodworking mortiser
Packaging Detail:wooden box,or according u requirement
Delivery Detail:within 20 days
