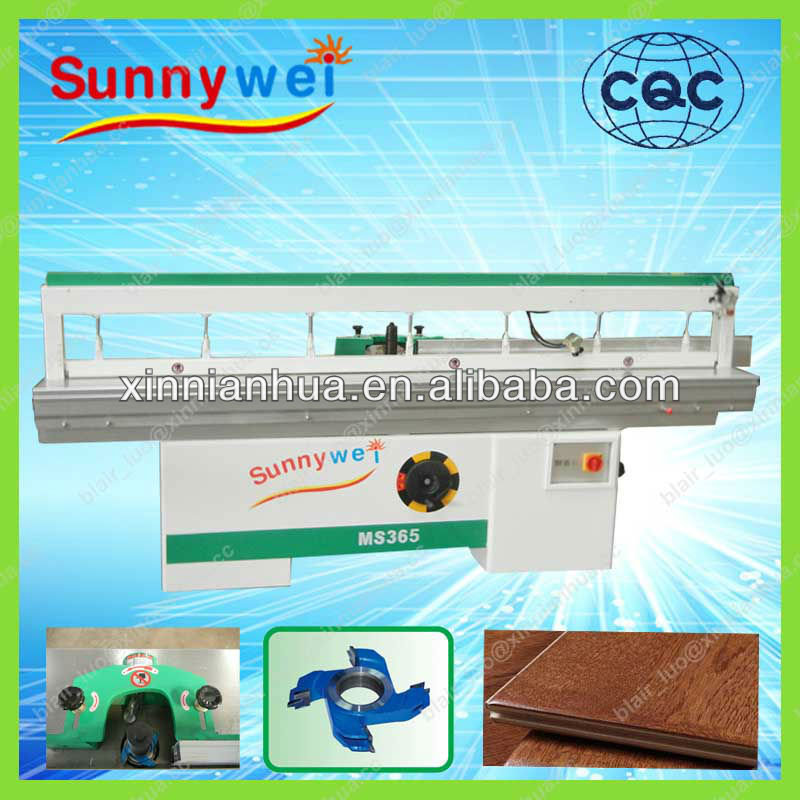

MS365 Tenon Milling Machine

USE OF THE MACHINE

This machine is maily used for milling concave-convex tenon slot, long slot finishing of the wooden door ,wood flooring processing, but also can plane the curved and straight edge,bevel edge,and making variety of wooden lines with the mold.

It is suitable for the woodworking furniture industry.

MAIN SPECIFICAITON AND TECHNOLOGY PARAMETER

MODEL	MS365
Slide worktable max distance	3000mm
Max processing length	2600mm
Max working width	5mm
Max working depth	5mm
Dia of cutter spindle	Φ35mm
Rotary speed of cutter spindle	9700/7500/5200r/min
Main spindle lifting height	100mm
Install power	4kw(5.5HP)/380V 50Hz
Consumption of pressure	0.6mpa
Weight of machine	560kg
Overall dimensions(L×W×H)	2800×750×1200mm

Advantage:

1.mainly use for milling concave-convex tenon slot long slot finishing

2.Pneumatic pressing materials function, high precision, decrease hard work, and high efficiency

3.Also can be used for planing surface finishing curved and straight edge

4.Body made of excellent steel plate, with enough rigid

5.Main spindle through refine grinding processing

6.Installed protect cover on main spindle cutter and aluminium baffle

7.Adopt steel ball double side structure with high precision, the error of straightness on whole distanc e of travel is less than 0.15mm.

8. Quality electric part with Schneider Brand

9. Motor add over load protection

Pictures:

Thank you for your attention!
