MR-144C sawtooth dlinter for cottonseed

MR-144C sawtooth dlinter for cottonseed:, 1. low power consumption, 2. high quality,high output, 3. save money - details see: https://www.machineto.com/mr-144c-sawtooth-dlinter-for-cottonseed-10279715
Condition:New,newType:CottonPlace of Origin:Shandong China (Mainland)Brand Name:LuMian
Model Number:MR-144CVoltage:380VPower(W):38.5KWWeight:2 Ton
Certification:ISO9001Warranty:1 YearAfter-sales Service Provided:Engineers available to service machinery overseasmachine:MR-144C sawtooth dlinter for cottonseed
patent:award national patentcertificate:QMS certificatesaw blade:144pcsOverall dimension:2500*1800*1900(mm)
MR-144C sawtooth dlinter for cottonseed
contact supplier for MR-144C sawtooth dlinter for cottonseed


MR-144C sawtooth dlinter for cottonseed

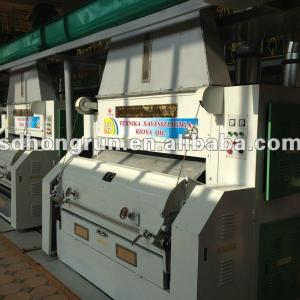

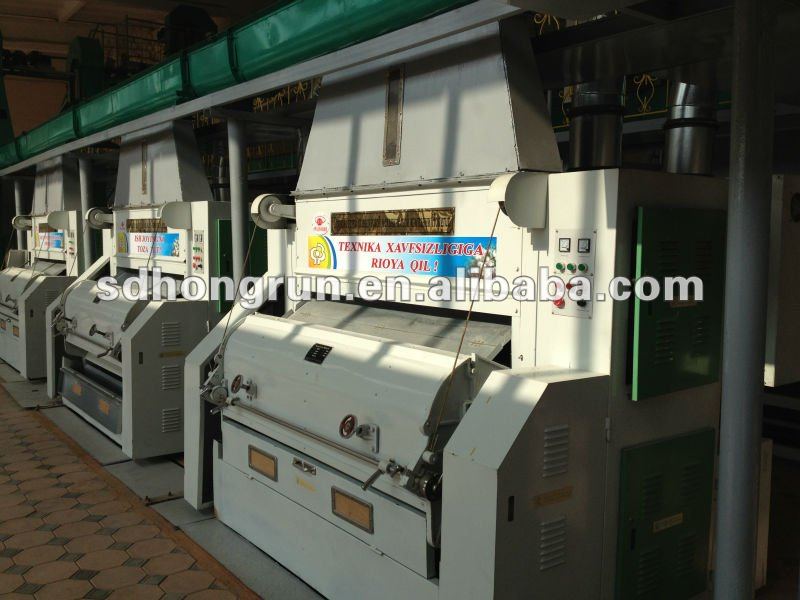

detail photo of MR-144C sawtooth dlinter for cottonseed

MR-144C sawtooth dlinter for cottonseed:
1. low power consumption
2. high quality,high output
3. save money

1. MR-144C sawtooth dlinter for cottonseed is used to strip the lint from gross cotton seed.

2. We adopt new technology, new process and new material to make the work property improve effectively, especially highlight its obvious advantages for the auto control cabinet and production efficiency .

3. MR-144C sawtooth dlinter for cottonseed can be divided into three specifications separately used to strip the 1st, 2nd and 3rd cut lint; the 2nd and 3rd belong to air-flow type.

4. MR-144C sawtooth dlinter for cottonseed can be used as matching equipment with other cotton ginning machine ( the match ratio depends on the actual requirements)

1. Main technical parameters

MR-144C sawtooth dlinter for cottonseed

Process capacity (kg/h)
The first process capacity3500-4500
The second process capacity1000-1500
The third process capacity750-1000
Lint output ratio (%)
The first lint output ratio1-1.5
The second lint output ratio4-6
The third lint output ratio2.5-3.5
Short-time lint output (kg)
The first short-time lint output0.29
The second short-time lint output0.35
The third short-time lint output0.21

2. Main technical parameters

MR-144C sawtooth dlinter for cottonseed

Roller of saw-blade(φ280-φ320)×1588.73(mm)

The first of the tooth-shape angle of saw blade is40°, the second and the third is

28°( tooth height 5-5.5mm)

Saw-blade number144 pcs
Saw-blade interval11.11mm
Max. frame inclination28-30°
Discharge-strip clearance2.8-3(mm)
Blowing-rate at lint outlet1.5-1.6 m3/s(non-load)
Wind-speed at lint outlet19-20 m/s(non-load)
Power equipped24.35 KW
Overall dimension2500×1800×1900(mm)
Weight2t

3. Motor model for MR-144C sawtooth dlinter for cottonseed:

Y160L-4 15KW Y132M-4 7.5KW

Y90S-4 1.1KW Y80M2-4 0.75KW

Raw material(ginned cottonseed) → MR-144C sawtooth dlinter for cottonseed→ delinted cottonseed

MR-144C sawtooth dlinter for cottonseed
Packaging Detail:standard export packing
Delivery Detail:7 days after down payment
