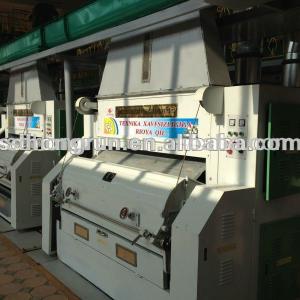

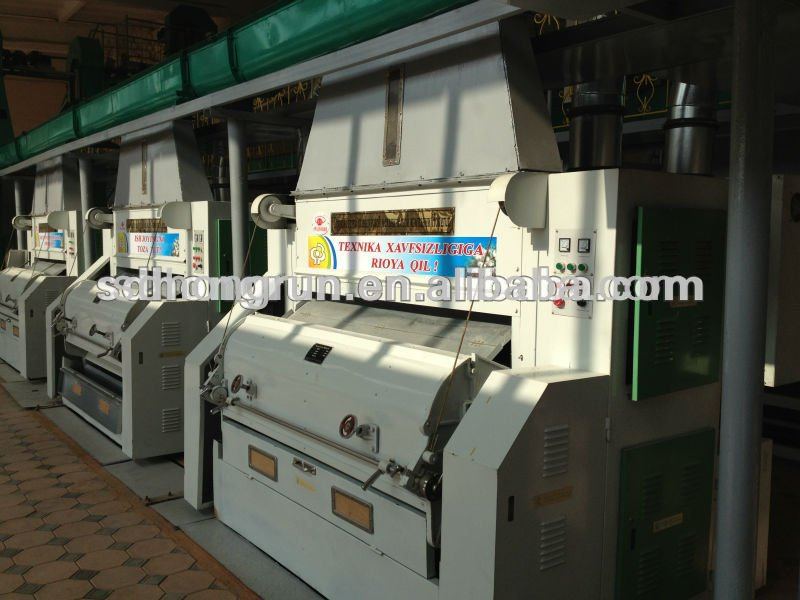

MR-144C sawtooth cotton seed linter

MR-144C sawtooth cotton seed linter:, 1. award national patent, 2. low power consumption,high output, 3. high quality - details see: https://www.machineto.com/mr-144c-sawtooth-cotton-seed-linter-10279767

Condition:New	Type:Cotton	Place of Origin:Shandong China (Mainland)	Brand Name:LuMian
Model Number:MR-144C sawtooth linter	Voltage:380V	Power(W):38.5KW	Weight:2 Ton,2t
Certification:ISO9001	Warranty:1 Year	After-sales Service Provided:Engineers available to service machinery overseas	machine:MR-144C sawtooth cotton seed linter
The first lint output ratio:1-1.5%	The second lint output ratio:4-6%	The third lint output ratio:2.5-3.5%	Saw-blade number:144 pcs
Power equipped:24.35 KW	Overall dimension:250018001900(mm)

Raw material(ginned cottonseed) → MR-144C sawtooth cotton seed linter → delinted cottonseed

MR-144C sawtooth cotton seed linter:
1. award national patent
2. low power consumption,high output
3. high quality

1. MR-144C sawtooth cotton seed linter is used to strip the lint from gross cotton seed.

2. We adopt new technology, new process and new material to make the work property improve effectively, especially highlight its obvious advantages for the auto control cabinet and production efficiency .

3. MR-144C sawtooth cotton seed linter can be divided into three specifications separately used to strip the 1st, 2nd and 3rd cut lint; the 2nd and 3rd belong to air-flow type.

4. MR-144C sawtooth cotton seed linter can be used as matching equipment with other cotton ginning machine ( the match ratio depends on the actual requirements)

1. Main technical parameters	MR-144C sawtooth cotton seed linter
Process capacity (kg/h)
The first process capacity	3500-4500
The second process capacity	1000-1500
The third process capacity	750-1000
Lint output ratio (%)
The first lint output ratio	1-1.5
The second lint output ratio	4-6
The third lint output ratio	2.5-3.5
Short-time lint output (kg)
The first short-time lint output	0.29
The second short-time lint output	0.35
The third short-time lint output	0.21

2. Main technical parameters	MR-144C sawtooth cotton seed linter
Roller of saw-blade	(φ280-φ320)×1588.73(mm)
The first of the tooth-shape angle of saw blade is40°, the second and the third is 28°( tooth height 5-5.5mm)
Saw-blade number	144 pcs
Saw-blade interval	11.11mm
Max. frame inclination	28-30°
Discharge-strip clearance	2.8-3(mm)
Blowing-rate at lint outlet	1.5-1.6 m³/s(non-load)
Wind-speed at lint outlet	19-20 m/s(non-load)
Power equipped	24.35 KW
Overall dimension	2500×1800×1900(mm)
Weight	2t
