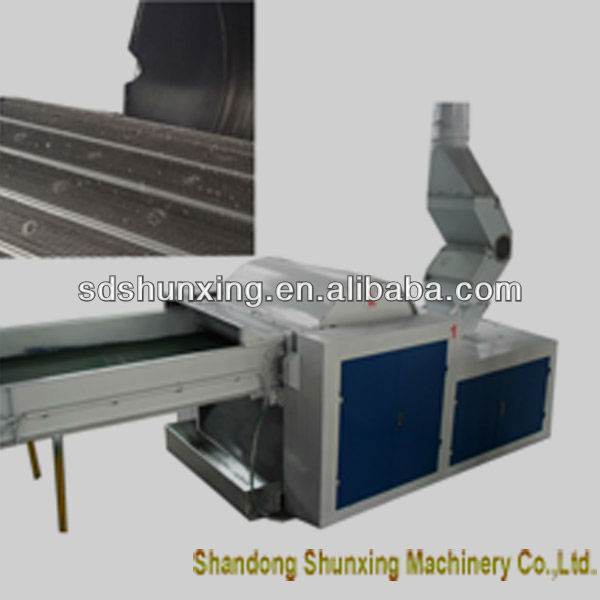

MQK-700 OPENING MACHINE with pins

1,pin roller, 2,capacity:300-400kg/h, 3,diameter roller:700mm, It is a new model that our company has manufactured. - details see: https://www.machineto.com/mqk-700-opening-machine-with-pins-10279659

Condition:New	Type:Cotton	Place of Origin:Shandong China (Mainland)	Brand Name:Shunxing
Model Number:MQK-700	Voltage:380V	Power(W):20KW	Weight:2000KG
Dimension(LWH):350017001250	Certification:CE,ISO 9001	Warranty:one year	After-sales Service Provided:Engineers available to service machinery overseas
color:white or blue

contact supplier for MQK-700 OPENING MACHINE with pins

It is used to open the yarn waste, fabric waste, help to loosen the fiber of the fabric waste, yarn waste etc. It can help to protect the fiber length of the regenerated cotton on the highest level .Same time, reduce the damage of the wire of GM machine series and increase the working efficiency of GM machine series. It includes waste removal system, so that raw material which not well processed will be sent back automatically by the waste removal system.

1. OUTPUT: 200-300kg/h

2. Nail cylinder dia.:700 mm

3. Cylinder speed: 800 rpm

4. Dust collection:outside dia:500 mm, mesh : 2

5. Main motor:Y180M-4,18.5KW 1 set

6. Fan:Y100L2-4,3KW 1 set

7. Gear box:Y90L-4,1.5KW 1 set

8. Nail board:special

9. Bearing:cylinder 2213K four

dust collection box :UCPL205 four

10. Overall(L×W×H): 3520×1700×1250 mm

11. Weight:1000kg
