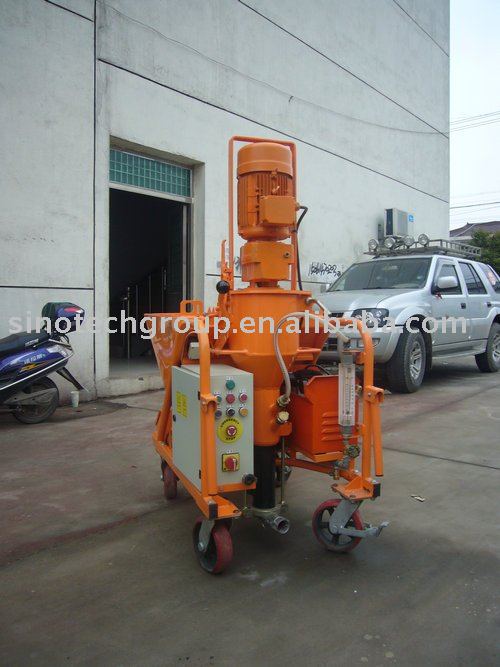

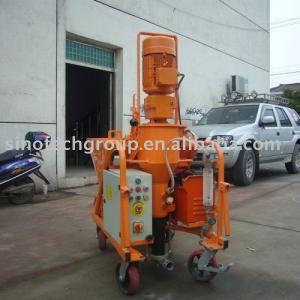

Mortar spraying machine

The machine is easy and comfortable transport due to their small and handy dimensions and low

weight. Thanks to its efficiency, silence and technical perfection, it is the top-priority machine

for dry ready-mixed mortar applications.

All pumpable dry ready-mixed mortars or materials, such as Cement mortars, Lime plaster,

gypsum plaster, Masonry mortars, Self-leveling floor, etc.

Features:

1. High working pressure, flow stability, able to pump higher sand content of mortar.

2. This product adopts screw conveyor, can output uniformity flow, to overcome the existing

deficiencies of uneven flow from Piston pump and Plunger Pump.

3. Mechanical transmission, simple and compact, consumable replacement quick and easy low- cost cutting, easy maintenance and low cost.

4. The rotor and stator materials is strong, work reliably, long service life.

5. Small volume, flexible, especially suitable for moving in narrow space.

\

Spraying machine model	UBL12
Rated spraying capacity (L/min)	4-20
Pump work pressure (Mpa)	1.2
Motor power (KW)	2.2
Work efficiency ( m2/shift), 15mm	400
Max. equivalent conveying height	15
Max. Equivalent horizontal conveying distance(m)	30
Max. Conveying grain (mm)	5
Spraying gun mouth diameter (mm)	Φ14,Φ16
Total weight (kg)	110
Total dimension (mm)	1540x600x1010
Character	The output can be adjusted at random

Remark:

1, work efficiency is calculated according to the thickness is 15mm, consider the efficient work time;

2, pump conveying height and horizontal length is tested according to following terms: pipe is

25mm in diameter, sand:cement=1:1, the thickness of mortar is 90mm.

Optional explanation:

1, the equipment can't mix the mortar, the user must pour the prepared mortar into the hopper,

2, when it's used for spraying, it need match air compressor.
