1),90 degree cutting, 2),Electric control up/down, 3),Oil supply device, 4),Dust collector, 5),Digital display device - details see: https://www.machineto.com/mj90x-model-wood-sawmill-equipment-with-90-degree-cutting-10347476

MJ-45A Series Sliding Panel Saw Match The Approprate Blade,Cutting The Following Materials :

1), Fiberboard,particlboard,melamine Plate

2), Wood panels

3), Gypsum board

4), Card board

5), Regular shape of the Synthetic materials

6), Plexiglass

7), Aluminum

Main Technical Parameter:

Model	MJ-90X
Dimensions sliding table	3200/415mm
Cutting length	3200mm
Cutting width	1250
Saw blade	250-300mm
Cutting height	80-120mm
Diameter of guide shaft spindle	40mm
Max. working height	55-90mm
Speed of main saw spindle	4000/6000 rpm
Spindle diameter	30mm
Tilling saw blade	90°
Main motor	5.5kw
Scriber specification	120mm
Non-load speed	8000rpm
Scoring spindle diameter	20mm
Scoring motor power	0.75kw
Weight	900kg
Overall dimensions	3250/3150/900mm

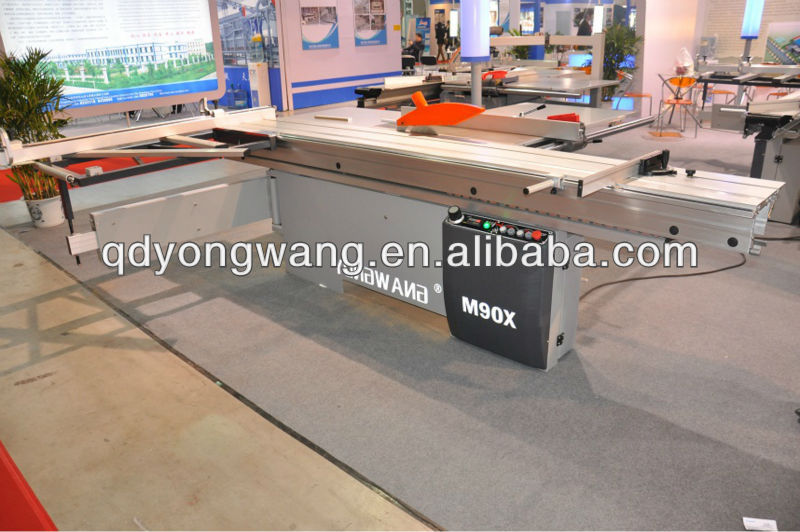

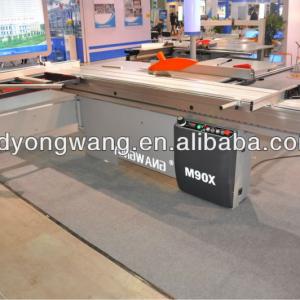

Picture Machine:

Picture Packing:

Standard Configuration Machine:

Model	MJ-90X
Saw Blade	One Set(Two Pieces), FREUD Brand
European Style Dust Collector	One Piece
Control Panel	1, The rise and fall adjustment of the blade are done electric control 2, With digital display device
Sliding Table	High Round Stick Rail(3200×415mm)
Rip Fence	Manual Control(With Slight Adjustment)
Motor	Two Sets(5.5kw/0.75kw)
Vertical Cutting Gearing	One Piece
Vertical Cutting Gearing Vernier Device	One Piece
Horizontal Cutting Gearing	One Piece
Horizontal Cutting Positioning Baffle	One Piece
Body Structure	One Set
Oil Supply Device	One Set
Assit Workbench	Two Pieces(Aluminum Materials)
Bevel	One Piece
Eccentric Swage(Manual Control)	One Set

Optional Auxiliary Machine:

Model	MJ-90X
Digital Device	With Crosscut Fence
Eccentric Swage	Pneumatic Control
European Style Goniometer	One Pieces
DoubleBag Dust Collection Device	One Set

Main Details Picture:

1), Control Panels

The rise and fall and tilt adjustment of the blade are done electric control.

With digital display device

It use the high quality high-carbon chromium bearing steel guide and precision car wheel to make sliding table more stable amd smoother.

The dimension : 3200/415mm

3), Rip Fence(Manual Control):

Stable durable and precise to adjust.

The hard chrome-plated round bar ensures that the fence moves smoothly.Rip fence can swing away under the level of the machine table when need to process large panels

4), Internal Structure:

The high quality materials combine with the precision process, making the core of machine low noise, small vibration, high precision operation and durable, satisfying the requirement of highprecision sawing.

5), European Dust Collector

6), Eccentric Swage(Manual Control)

7), oIL Supply Device

Auxiliary Machine:

1), Eccentric Swage Device:

2), Double Bags Dust Collector:

Main Information:

1),Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.2),Movable table guide track is plating chromium steel balls structure, exact and durable.3),Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.4),With oxidation treatment, movable table surface is beautiful and hardwearing.5),Main and scoring saw blades’ moving is electrical control system and digital indicator.
