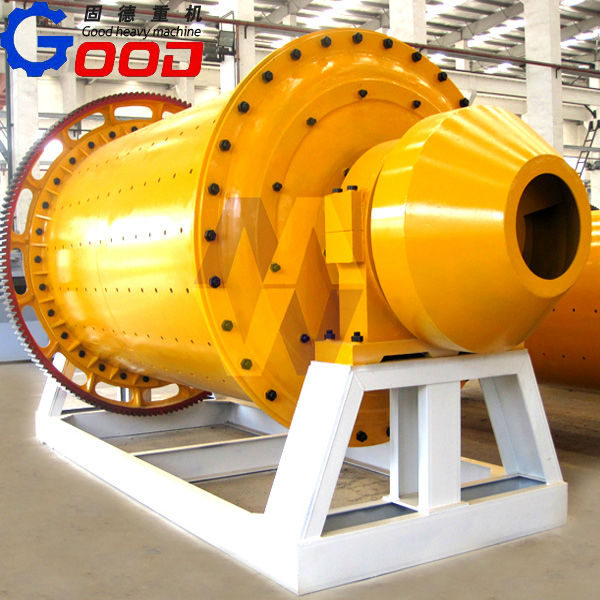

Mineral processing small ball mill for sale

small ball features:, 1.Processing capacity, 2.wide use, 3.low cost, 4Installation, commissioning and convenient, easy operation - details see: https://www.machineto.com/mineral-processing-small-ball-mill-for-sale-10313967

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):55
Capacity(t/h):3-5T/H	Place of Origin:Hunan China (Mainland)	Brand Name:GHM	Model Number:MQ1245
Dimension(LWH):5500x1600x2200	Weight:13.8T	Certification:ISO9001/2000	Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseas	colour:Red, white, yellow, blue	Material processing methods:Dry or wet	gear rotation direction:Left handed or right handed
speed:32(r/min)	Outfit ball quantity:7(t)	Give partical:≤ 25 (mm)	The grain-size:0.074 -0.4(mm)
Motor power:45(kw)	lining material:manganese alloy	gear material:cast steel

Henan Gude Heavy Machine Manufacturing Co., Ltd. is a joint-stock enterprise specialized in manufacturing mining machinery. We are specialized in research, design and manufacture various type of ball mill, our main grinding mill products are: ball mill, wet type ball mill, dry grid ball mill, cement mill, ceramic ball mill, rod mill, overflow ball mill, quartz sand ball mill, intermittent ball mill, energy-saving ball mill and so on.

Application:

Ball mill is the key equipment of beneficiation equipment for grinding after the crushing process, which is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control) and widely used in the manufacture industries, such as cement, silicate, refractory material, new building material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

Working Principle of Ball Mill

According to different ways of discharge and overflow ball mill can be divided into lattice type and overflow. This machine is grid type mill with two positions. When the machine starts work, material from the feed device air shaft spiral evenly go into first mill warehouse, the warehouse equipped with ladder liner or corrugated liner, inbuilt are different size steel balls, centrifugal force produced by steel rotating cylinder will brought the ball down after a certain height, severe impact on the material and grinding them; After coarse grinding in the first mill warehouse, then go into the second warehouse from single-compartment plate, the warehouse lined with flat liner, built-in ball, the material be further grinding; Powder material discharged through the discharge grate plate , and meanwhile completed the grinding operation.

Features of Ball mill

1) Ball mill is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine.

3) Ball mill is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine.

6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.

7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

8) The longer the ball mill runs, the finer the powder will be.

9) Ultimate particle size depends entirely on how hard the material you¡¯re grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

In view of the advantages of ball mill, it is suitable for dry grinding, wet grinding, crushing various hard, dry in hard minerals, such as black metal, non-ferrous metal, limestone, cement, iron, coal, chemical raw materials and all kinds of metal solid materials.

Specifications of Ball Mill:

Model	Speed (r/min)	Max. weight of balls (t)	Input size (mm)	Output size (mm)	power (kw)	Capacity (t/h)	Weight(t)
Φ900×1800	37	1.8	≤15	0.075-0.89	15	0.5-2	3.4
Φ900×2100	37	2.3	≤15	0.075-0.4	18.5	0.4-2	3.9
Φ900×3000	35	3.85	≤25	0.075-0.4	30	1.1-2.5	7.78
Φ1200×2400	35	4.6	≤25	0.075-0.4	30	1.3-3.2	8.65
Φ1200×2800	35	5.4	≤25	0.075-0.4	37	1.5-3.7	10.02
Φ1200×4500	35	8.6	≤25	0.075-0.4	45	2.7-6.79	14
Φ1500×3000	29	9	≤25	0.047-0.4	75	3.3-8.2	14.12
Φ1500×3500	29	10.5	≤25	0.047-0.4	75	3.3-8.5	15.64
Φ1500×4500	29	13.5	≤25	0.047-0.4	90	4.5-12	20
Φ1500×5700	29	17	≤25	0.047-0.4	110	2.6-14	21.5
Φ1830×3000	24	13.5	≤25	0.047-0.4	135	4-15	28
Φ1830×3600	24	14	≤25	0.047-0.4	135	4-15	29
Φ1830×4500	24	20	≤25	0.047-0.4	155	4-19	32
Φ1830×7000	24	31.5	≤25	0.047-0.4	210	6-22	36.5
Φ2100×3000	22	18	≤25	0.047-0.4	210	6.4-28	40.79
Φ2100x3600	22	20	≤25	0.047-0.4	210	7-28	42
Φ2100×4000	22	21.5	≤25	0.047-0.4	210	7.6-28	43.45
Φ2200×3600	21.7	25	≤25	0.047-0.4	245	5.2-32	44
Φ2200×7000	21.7	46	≤25	0.047-0.4	380	15-38	63
Φ2400×3600	21	28	≤25	0.047-0.4	320	8-60	47
Φ2400×4500	21	35	≤25	0.047-0.4	380	8.5-60	70.5
Φ2700×3600	20.7	40	≤25	0.047-0.4	400	12-80	75.5
Φ2700×4500	20.7	48	≤25	0.047-0.4	430	12-90	102
Φ3200×4000	18	65	≤25	0.047-0.4	800	30-180	137

My company strong technical force, rich practical experience, highly responsible to customers. The main products are the overflow ball mill, ceramic ball mill, high efficiency and energy saving ball mill, coal mill and horizontal ball mill and other large machinery and equipment. Welcome people from all walks of life to visit our factory!

My company to undertake turnkey job, our factory specializing in research, development, design and manufacturing enterprises, products won several honors and through international quality system certification, and exported to more than 30 overseas countries and regions, we will with high quality products and services together with the domestic and foreign merchants to create a more fruitful results.
