rod mill, mill machine, 1.10-20% energy saved, 2.10-20%.capacity increased, 3.Wet method manufacturing, 4.Adjustment fineness - details see: https://www.machineto.com/milling-machine-high-grinding-ratio-mb1830-rod-mill-machine-10314766

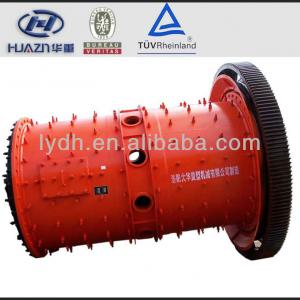

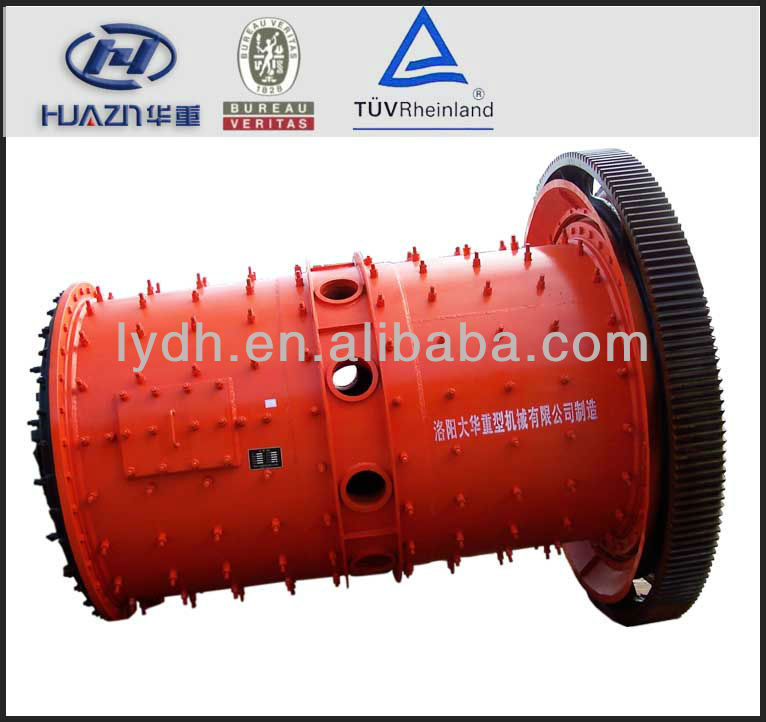

Rod Mill

Rod mill is applied to metal and nonmetal mine, water conservancy and glass building materials grinding various ore, rock and artificial sand which needs product granularity evenly. The energy-efficient rod mill that our company produces is all that rolling bearing support instead of bearing bush slip bearing support. It will save 10-20% energy compared with slip bearing support and improve production capacity by 10-20%. It uses grease replacing dilute oil lubricating station. The grinding mill does not need allocate high price high or low pressure lubricating station. The grinding mill with diameter above 2700mm can adopt high pressure electrical machinery, pneumatic clutch, big gear oil spray lubricating and slow speed driving device for maintain. The production capacity differs significantly due to material kind, feed size and discharge size. ..

Model	Barrel	Barrel volumem3	Ball loadt	Rotate speed of barrelr/min	Powerkw	Discharge	Capacityt/h	Weight t
	Dia. × L
GMB1530	φ1500×3000	5.0	8	23	75	2.5-0.2	12-5.5	16.71
GMB1830	φ1800×3000	6.5	17	22.8	132	2.5-0.2	20-9.5	29.8
GMB2122	φ2100×2200	6.7	18	20.9	160	2.5-0.2	27-12	42.5
GMB2130	φ2100×3000	9.2	25	20.9	160	2.5-0.2	30-13	43.9
GMB2136	φ2100×3600	11.0	28	20.9	200	2.5-0.2	35-14.8	49.4
GMBZ2136	φ2100×3600	11.0	32.5	20.9	210	-5.0	61.5-43	49.9
GMB2140	φ2100×4000	12.2	31	20.9	220	2.5-0.2	38-17	50.3
GMB2145	φ2100×4500	13.8	35	20.9	250	2.5-0.2	43-19	51.8
GMB2430	φ2400×3000	12.2	31	19	250	2.5-0.2	47-22	56.0
GMBZ2430	φ2400×3000	12.2	31	19	250	-5.0	73-52	58.3
GMB2436	φ2400×3600	14.6	37	19	280	2.5-0.2	55-26	61.0
GMBZ2436	φ2400×3600	14.6	37	19	280	-5.0	84-60	62.4
GMB2730	φ2700×3000	15.3	35	17.5	315	5-0.8	125-37.5	75.6
GMB2736	φ2700×3600	18.4	42	17.5	355	5-0.8	150-45	81.8
GMBZ2740	φ2700×4000	20.5	47	17.5	400	5-0.8	165-50	84.3

Rod Mill (rod grinder, grinding machine, mill machine)
