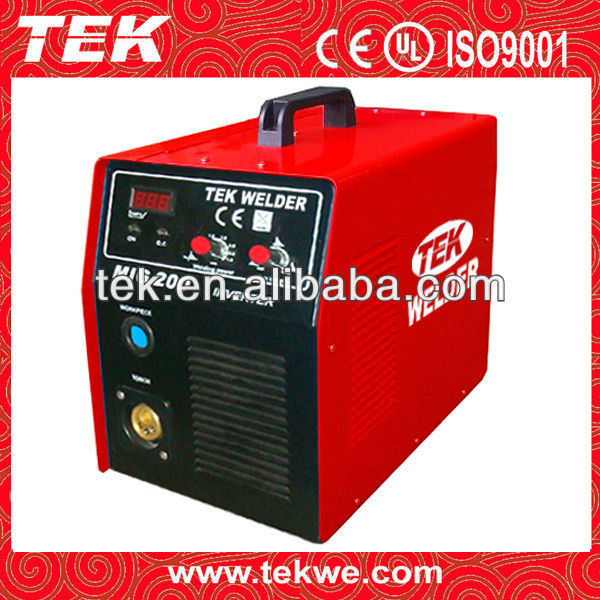

MIG200S HOT CO2 MOS Welding Machine
MIG200S HOT CO2 MOS Welding Machine, 1.easy electronic circuit, 2.compact light, 3.energy-saving, 4.CE&CCC approved - details see: https://www.machineto.com/mig200s-hot-co2-mos-welding-machine-10136694
| Condition:New | Place of Origin:Fujian China (Mainland) | Brand Name:TEK | Model Number:MIG200S |
| Wire Feeding Speed:3-15min | Dimensions:580*340*580mm | Weight:30KG | Usage:Stainless steel,Low alloy steel,Carbon steel |
| Voltage:220V | Certification:CE,ISO9002 | Warranty:1 Year | Color:Red or Others |
| Frequency:50Hz/60HZ | Certificate:CE,CCC,ISO9001...... | 20ft Container:240pcs |
MIG200S HOT CO2 MOS Welding Machine
1. Suitable for sheet over 0.8mm
2. Cost saving and efficiency improving
3. With wire machine, and easy and considerable for operation
4. High weling speed, high arcing success rate
5. Continuous and discontinuous welidng function
6. Automatic voltage pulsation compensation capability
7. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
8. Little spatter, uniform weling pool, good welding shap
| Model | MIG200S |
| Power voltage frequency | AC.1-phase 100V~220V ±15% 50Hz-60Hz |
| Input current | 9.2A |
| Power capacity | 6KW |
| Rate output current | 50-200A |
| Output Voltage | 16.5-24V |
| Duty cycle | 60% |
| Power factor | 0.93 |
| Efficiency | 85 |
| Insulation class | B |
| Type of wire feeder | Inside |
| Overall dimension | 580*340*580mm |
| Protection class of case | IP21 |
| Feeding speed | 2.5-13m/min |
| Pastflow time | 1±0.5 |
| Diameter of coil | 270mm |
| Weight | 30kg |
| Diameter of earth cable | 2.5m |
| Packaging Detail:Carton, Wooden Pallet Or According To Customers Request |
| Delivery Detail:15days |
