Micro powder mill,high pressure micro powder mill,high pressure micro-powder grinder

Powder mill,Pulverizer,Grinding mill:, 1.ISO9001:2000, 2.Price:negotiable, 3.Capacity:0.8-20T/H, 4.Payment terms:L/C or T/T - details see: https://www.machineto.com/micro-powder-mill-high-pressure-micro-powder-mill-high-pressure-micro-powder-grinder-10313941

Condition:New	Type:Raymond Mill,micro grinder mill	Capacity(t/h):1t/h-30t/h	Place of Origin:Shanghai China (Mainland)
Brand Name:Jianye	Model Number:YGM series	Certification:ISO9001:2000	Warranty:whole using life
After-sales Service Provided:Engineers available to service machinery overseas	price:negotiable	certificate:ISO9001:2000	payment:TT,LC
brand:jianye	capacity:0.8-20t/h	color:as your requirment	application:ore,limestone,concrate,granite, and kind of stone
installment:under our engineer's guide	after-service:whole using life

Micro powder mill,high pressure micro powder mill,high pressure micro-powder grinder

contact supplier for Micro powder mill,high pressure micro powder mill,high pressure micro-powder grinder

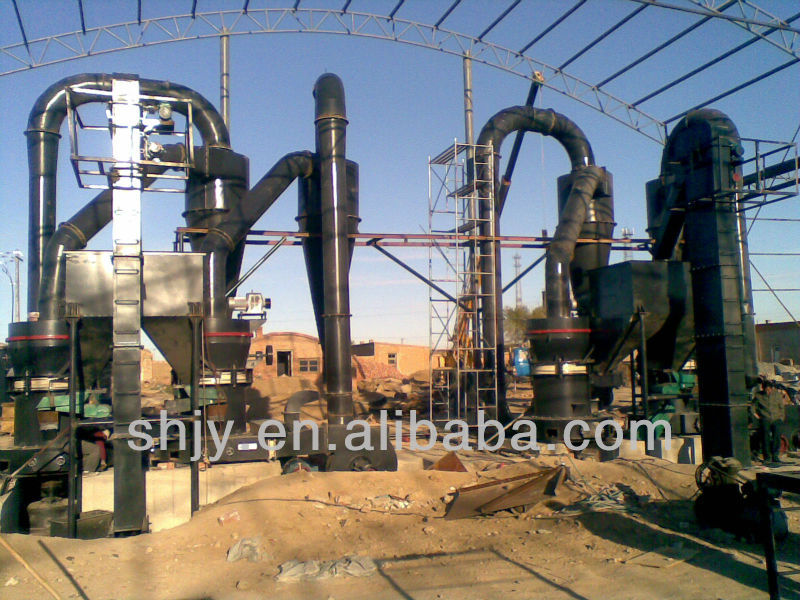

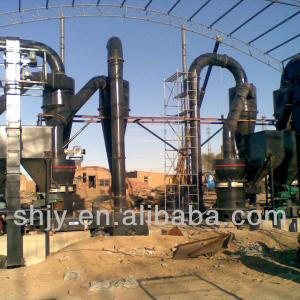

Shang Jianye offer youhigh quality High-Pressure Micro Powder Mill

1.High-Pressure Micro Powder Millassimilates new technology from Germany and Japan; this machine has solved the classifying difficulty of micro powder.

2. The product size is between 500 meshes (25 micron) and 2500 (5 micron) meshes.

3.High-Pressure Micro Powder Millis used for grinding the barite, limestone, kaolin, cerames, ahd slags, etc, below scale 6 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing.

Detailed Product Description

Grinder mill,stone pulverizer,mill:
1.ISO9001:2000
2.Easy operation
3.Capacity:8-20T/H
4.Payment terms:L/C or T/T

Application:

The machine is used to grind barite, limestione, ceramics, etc, such non-inflammable and non-explosive stuff,which the hardness is below 9.3 Mohs and moisture is less than 6% in the trades of mining,metallurgy,chemical engineering and construction material.The fineness size is adjusttable in the range of 60-1250 mesh(It can even reach to 2500 mesh).It is possible to produce 10-60 mesh powder through assembling special device in the machine.

Operating principle:
In the main frame,a 1000-1500kg high pressure spring is fixed to the roller suspender.After the grinder is put into effect,the roller will circumgyrate around the main shaft,and rolls chosely against the grinding ring effected by the high pressure is 1.2 degree than Raymond mill.
When the stuff is loaded into the grinding cavity,it is shoveled into the space between the roller and the ring for grinding.The grinded powder goes into classifier along wiht the circulation wind of the blower and the standard finenesspowder is guided to the cyclone collector as finished and lager size stuff falls back to the grinder for regrinding.The circulation wind returns to the blower to repeat the above process and the after wind enters into bag dust cleaner for purification.

When there is abrasion between roller and ring,it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring hence to be ensured,the stable output and fineness

Specification:

Model		YGM7815	YGM8514	YGM9518	YGM4121	YGM4528
Roller	Number	3	3	4	5	3
	Diameter,(mm)	260	270	310	410	260
	Height(mm)	150	140	180	210	150
Ring	Inside Diameter(mm)	780	830	950	1280	780
Ring	Height(mm)	150	140	180	210	150
Stuff Size(mm)		15	20	25	30	15
Fineness of product(mm)		0.613-0.033	0.613-0.033	0.613-0.033	0.613-0.033	0.613-0.033
Powder for main roller mill(kw)		18.5	22	37	75	18.5

Model	Fineness of product(mm)
	0.25	0.125	0.075	0.044
	Capacity(mm)
YGM7815	1.7-4	2.2-3.0	1.5-2.2	1.0-1.4
YGM8514	2.0-5	3.4-4.6	2.2-2.8	1.2-2.0
YGM9518	2.5-6.6	4.3-5.6	3.0-3.8	2.1-3.0
YGM4121	3.0-10	5.0-9.3	4.0-6.6	2.8-4.4
YGM4528	6.0-20	4.6-13.6	4.9-9.0	2.6-8.0
