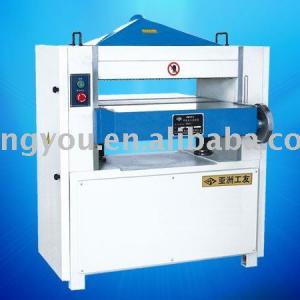

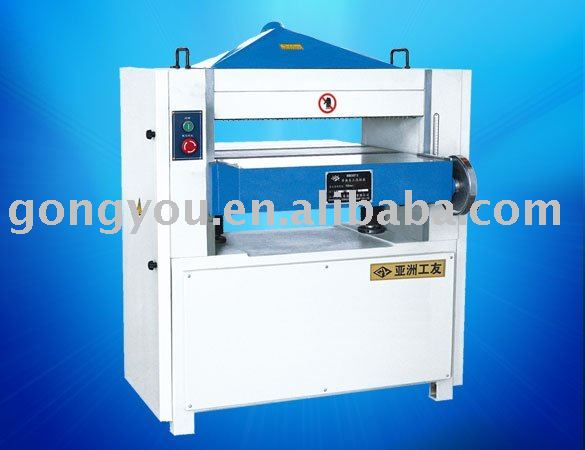

MH104H Single-side woodworking thicknesser
1)MH104H Single-side woodworking thicknesser, 2)Max. planing width:400mm, 3)Max. planing thickness:200mm, 4)Motor:4KW - details see: https://www.machineto.com/mh104h-single-side-woodworking-thicknesser-10343227
Place of Origin:Shandong China (Mainland) | Brand Name:GY | Model Number:MB104H | |
| | MB104H | MB105H | MB106H | MB107H |
Max. planing width | mm | 400 | 500 | 500 | 700 |
Max. planing thickness | mm | 200 | 200 | 200 | 200 |
Min. planing thickness | mm | 8 | 8 | 8 | 8 |
Min. planing length | mm | 220 | 220 | 220 | 220 |
Feeding speed | m/min | 8;10;12 | 8;10;12 | 8;10;12 | 8;12;16 |
Max.planing depth | mm | 5 | 5 | 5 | 5 |
Spindle speed | r/min | 4800 | 4800 | 4800 | 4800 |
Blade number | | 4 | 4 | 4 | 4 |
Spindle dia. | mm | 105 | 105 | 105 | 123 |
Motor | kw | 4 | 4 | 7.5 | 7.5 |
Dast outlet dia. | mm | 100 | 100 | 100 | 100 |
Overall dimensions | mm | 850× 830 × 1230 | 950× 830 ×1230 | 1080× 830 × 1280 | 1150× 930× 1320 |
Net.weight | kg | 445 | 476 | 553 | 663 |
1)MH104H Single-side woodworking thicknesser
2)Max. planing width:400mm
3)Max. planing thickness:200mm
4)Motor:4KW
Packaging Detail:wooden case |
Delivery Detail:30 days |
