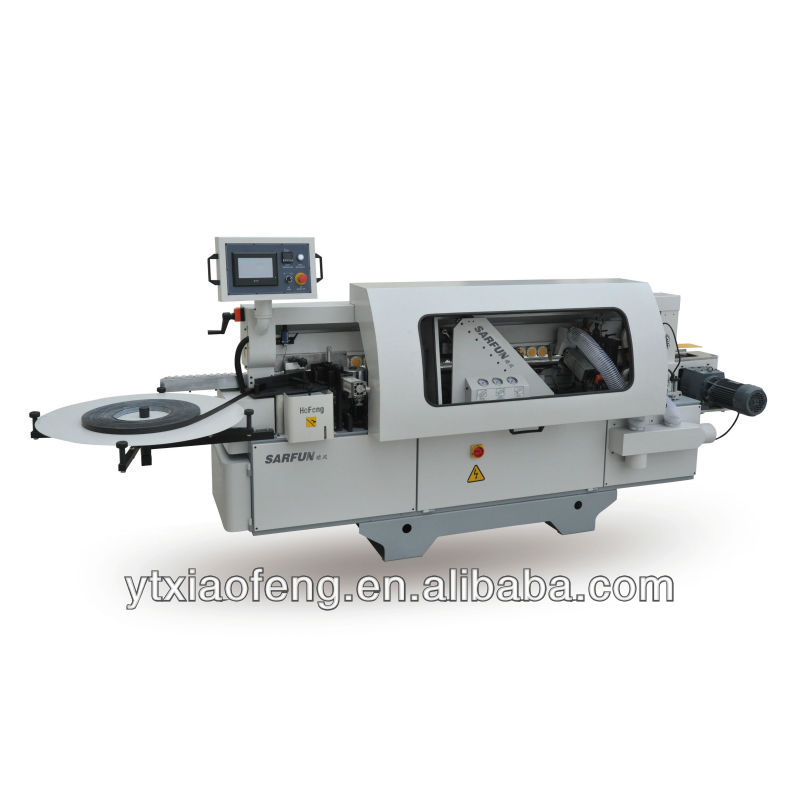

1.Edge feeding-Edging-Edge cutting-End trimming-Fine finishing-Buffing, 2.Touch screen,PLC system - details see: https://www.machineto.com/mfb60at-edge-banding-machine-10343782

Model	MFB60ET	MFB60AT	MFB600T
Panel length	Min.120mm(PVC)	Min.120mm(PVC)	Min.120mm(PVC)
Panel width	Min.60mm	Min.60mm	Min.60mm
Panel thickness	10~60mm	10~60mm	10~60mm
Edge width	15~65mm	15~65mm	15~65mm
Edge thickness	0.4~3mm	0.4~15mm	0.4~15mm
Feeding speed	22m/min	14.18.22m/min	14.18.22m/min
In-put voltage	380v	380v	380v
In-put frequency	50Hz	50Hz	50Hz
Out-put frequency	200Hz	200Hz	200Hz
Total power consumption	3.98KW	7.44KW	5.98KW
Required air pressure	0.7Mpa	0.7Mpa	0.7Mpa
Net weight	880kg	1200kg	1390kg
Overall dimensions(L x M x H)	2565x850x1360	3380x850x1380	3705x850x1380

1. The body and binder beam with heavy-duty steel and special heat treatment process, better stability.
2. 100% high frequency motors all made in Italy.
3. 100% electrical components are supplied by SIMENS, SCHNEIDER, OMRON, DELTA and LG brand.
4. 100% TAIWAN AIRTAC air-operated to ensure the accuracy.
5. Large and small knife eliminate the limitation of material choice.
6. Five edging and rolling system makes the fit closer and smooth.
7. Stable high speed edge feeding system, 19m/min.Speed adjustment 9-19m. Panel width min.60.mm.
8. Wood edge thickness max.15mm and min.0.4mm.
9. Human clamping bar. Easier operation when the edge thickness change.
10. All the parts are made with fine processing of high-precision CNC center, and this ensures the stable and high efficiency operation.
11. The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
