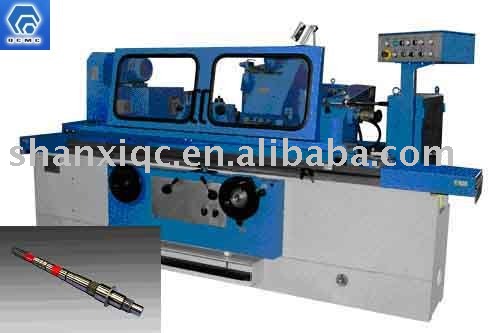

ME1432B/500/1000/1500 Cylindrical Grinding Machine

designed for grinding cylindrical, conical external surface, with accuracy of IT5 and IT6. - details see: https://www.machineto.com/me1432b-500-1000-1500-cylindrical-grinding-machine-10126542

Condition:New	Type:Surface Grinding Machine	Place of Origin:Shaanxi China (Mainland)	Brand Name:QINCHUAN
Model Number:ME1432B/500/1000/1500

ME1432B/500/1000/1500 Cylindrical Grinding Machine

contact supplier for ME1432B/500/1000/1500 Cylindrical Grinding Machine

The machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tools or repair workshop in small batch production.

The longitudinal travel of worktable is controlled steplessly by hydraulic system or by handwheel. The infeed of wheelhead is carried out by hydraulic automatic periodic feed and also by handwheel. The rapid approach and withdrawal of wheelhead, retracting of tailstock center, lubrication of slideway and leadscrew are all hydraulically controlled.

Uniformity of dia. In longitudinal section(mm)
Roundness (mm)	Roundness		Cylindricity
Max. grinding length (mm)	a (mm)		b (mm)
500, 700	0.0015	0.000059"	0.005(0.002") Shorter test piece
1000, 1500	0.0025	0.0001"	0.008(0.003") Longer test piece
The accuracy of external cylindrical grinding on chuck (mm)
A. Roundness	mm	0.0025	0.001"
The accuracy of internal cylindrical grindin gon chuck (mm)
A. Roundness	mm	0.0025	0.001"
Cylindricity	mm	0.010	0.0004
roughness	µm	Ra0.2	Ra0.0079

Specification

Grinding dia.	External cylindrical	With steady rest		Min	mm	15	0.59"
				Max	mm	150	5.9"
Without steady rest				Min	mm	15	0.59"
				Max	mm	320	12.60"
Internal cylindrical Grinding dia.with steady rest				Min	mm	16	0.63"
				Max	mm	125	4.92"
Without steady rest				Min	mm	12	0.47"
				Max	mm	125	4.92"
Max. grinding length		External cylindrical			mm	500, 750, 1000, 1500	16.69", 29.53", 39.37", 59.06"
Internal cylindrical					mm	125	4.92"
Max. workpiece weight					Kg	150	33 lbs
Distance between center					mm	500, 750, 1000, 1500	16.69", 29.53", 39.37", 59.06"
Center high					mm	180	7.09"
Workstock center					Morse	M4
Tailstock center					Morse	M4
Retracting of sleeve of tailstock					mm	30	1.18"
Min. manual feed					mm	0.0025	0.001"
Auto-periodic feed					mm	Yes
Auto-feed						No
Wheel dressing and compensation						Manual
Max. swivel angle of upper-worktable Clockwise						3
Counter-clockwise						9,7,7,6
Grinding wheel				Max	mm	400×50×203
				Min	mm	300×50×203
Wheel speed					m/s	28-35	1.1"~1.38"
Spindle speed					r/min	1870-1990
Max. movement of grinding slide (includes the hydraulic rapid approach&withdrawal)					mm	270	10.63"
Rapid approach & withdrawal of wheelhead					mm	50	1.97"
The swivel angle of wheelhead						±30º
Internal grinding wheel			Max		mm	80×32×20
			Min		mm	15×16×5
Total power of motors					Kw	7.475	10 hp
Packing case					mm	(135.83,135.83,138.98,170.87)×2000×1960
Net weight of the machine					kg	3500,3800,4000,4700	7700,8360,8800,10340
Gross weight of the machine					kg	400,4300,4600,5500	8800,9460,10120,1210

Packaging Detail:Moisture resistant wrapping and wood crates are included. If needed, complete boxes can be provided to cover the machinery pieces. Due to the nature of long distance shipping, no guarantee against water and fungus attack is issued.

Delivery Detail:3-4 Months
