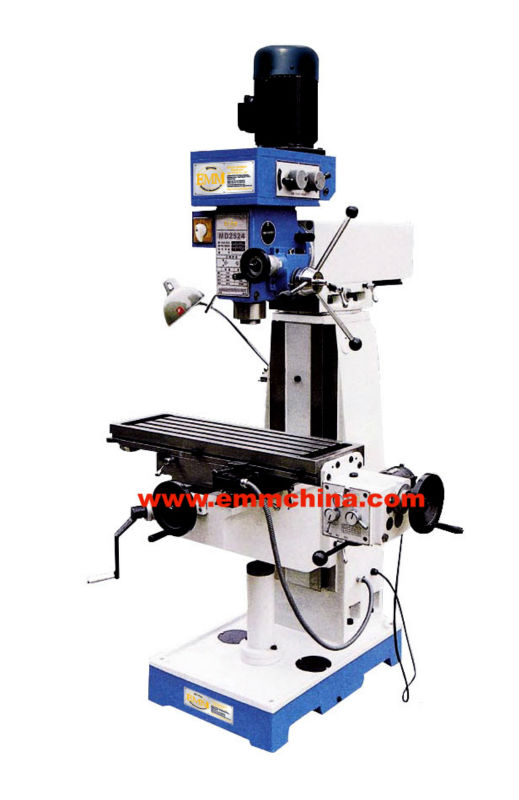

MD2524 drilling and milling machinery
1.Automatic spindle feed, 2.metal surface treatment equipment - details see: https://www.machineto.com/md2524-drilling-and-milling-machinery-10130851
| Condition:New | Place of Origin:Jiangsu China (Mainland) | Brand Name:EMM | Model Number:MD2524 |
| Type:Vertical | CNC or Not:Normal | Voltage:380v/220v/415v | Power(W):850/1500 |
| Dimension(L*W*H):1290*1140*2100 | Weight:610kg | Certification:CE | After-sales Service Provided:Engineers available to service machinery overseas |
| color:all color |
MD2524 drilling and milling machinery
| Specification | Units | MD2524 |
| Table size | mm | 800*240 |
| Table travel | mm | 400*200 |
| Distance from spindle nose to table surface | mm | 70-420 |
| Max. drilling dia. | mm | 50 |
| Max. end milling width | mm | 100 |
| Max. vertical milling dia. | rpm | 25 |
| Max. tapping dia. | mm | M16 |
| Spindle speed range | rpm | 115-1750 |
| Spindle travel | mm | 120 |
| Overall dimension (L*W*H) | mm | 1290*1140*2100 |
| Spindle motor power | KW | 0.85/1.5 |
| Machine weight | KG | 610 |
| Packaging Detail:standard export package |
| Delivery Detail:45 working days after order confirmed |
