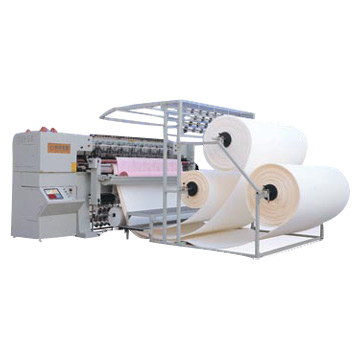

use for making mattress - details see: https://www.machineto.com/mattress-machinery-hc-94-3ja-10323660

Features:
1) Function of automatic stop on breaking of thread and needle raising
2) Bottom thread cutting and fabric rolling are fast with production rate of 20%

to 50%, higher than any other quilting machines
3) Bottom stitch uses common mixed cotton thread for all patterns
4) Very little deformation when quilting between thick and thin fabric
5) Uses high speed aero dynamic bottom thread cutting machine architecture,
and therefore, can produce an uniform and threadless edge
6) Both X and Y axes are driven by high power Panasonic servo motors that are
capable of quilting fabric materials at 50mm in thickness
7) Extended horizontal movement (moving distance of 450mm), can produce super
large patterns
8) Spacious look with single unit design
9) Capable of quilting single independent, all round 360 degree and 180 degree
patterns

Specifications:
1) Size (L x W x H): 5,200 x 1,220 x 2,000mm
2) Weight: 4,000kg
3) Quilt width: 2,450mm
4) RPM: 750~950
5) Production speed: 65~180m/h
6) Needle type: 180/24
7) Needle arrangement: (50.8, 76.2, 127), (76.2, 76.2, 152.4)
8) Max. horizontal movement: 450mm
9) Needle space: 25.4mm
10) Voltage: 380V, 50Hz/220V 60Hz
11) Max. stitch size: 2~7mm
12) Power: 4.5kW
13) Quilting thickness: ≤50mm
