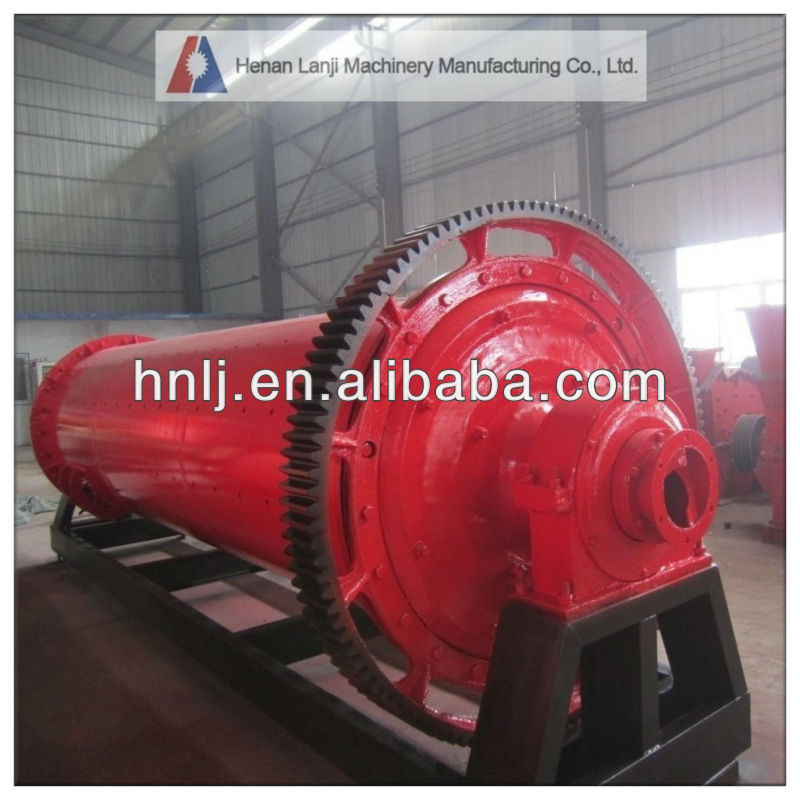

Manufacturing high quality cement ball mill machines from China

the feature of cement ball mill, 1.energy saving, 2.high performance, 3.high capacity, 4.reliable working condition - details see: https://www.machineto.com/manufacturing-high-quality-cement-ball-mill-machines-from-china-10314821

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):100
Capacity(t/h):5-8t/h	Place of Origin:Henan China (Mainland)	Brand Name:Lanji	Model Number:1.2*4.8m
Dimension(LWH):540012001500	Weight:23.5t	Certification:ISO9001	Warranty:1 year
After-sales Service Provided:Overseas service center available	Color:As per the buyer's requirement	Grinding kind:Wet or dry	Price:Negotiable
Visit our factory:Welcome	Quality:Best	Business type:Manufacturer

Cement mill application:

Cement mill is LanJi machinery company for grinding ball mill can break the characteristics of the new building materials production,is the key equipment for grinding after the crushing process.Mill widely used in cement, Portland products, new building materials, refractory material, chemical fertilizer, black and nonferrous metal processing and glass ceramics production industry, of all kinds of ores and other materials may be grinding of dry or wet grinding. And the appearance of the cement mill, speeding up the building construction pace, promote the development of the construction industry.

Cement mill characteristics:

Cement mill is mainly formed by the feeding part, discharging part, Rotary Department, Transmission Division (reducer, small transmission gear, motors, electrical control) and other major components. Hollow axis adopts cast steel, lined with removable, rotary gear hobbing using castings, cylinder liner wear studded body, has good wear resistance. The machine running smooth, reliable work .

Cement mill principle:

Cement mill for horizontal cylinder rotating device, the outer gear transmission, two storehouse, grate ball mill. The material is feeding device into the hollow shaft for the spiral evenly into the mill first storehouse, the warehouse liner or there were ladder corrugated linings, in a different specifications steel ball, cylinder rotation will produce centrifugal force steel ball to a certain height down after, to material produce slams and abrasive. The material in the first storehouse reach coarse grinding, through the single diaphragms in the second class, in the warehouse with flat liner, with steel ball that will further grinding materials. Powder which through the unloading Bi board eduction, finish grinding homework..

Note: according to material and row ore way, can choose dry type ball mill and wet grate ball mill.

Technical data :

Item	Model(m)	Capacity (T/H)	Milling type	Transmission type	Power (KW)	Reducer		Weight (T)	Remarks
						model	speed ratio
1	Φ2.2×7m	8-9	open flow	brim	380	ZD70	5	54
2	Φ2.2×7.5m	10-11	open flow	brim	380	ZD70	5	63
3	Φ2.2×8m	10-12	open flow	brim	380	ZD70	5	65
4	Φ2.2×9.5m	14-16	open flow	brim	475	ZD70	5	70
5	Φ2.4 ×10m	18-19	open flow	brim	630	JR75	5.64	94.5	without motor
6	Φ2.4×11m	19-21	open flow	brim	630	RZD80	6.3	99.2	without motor
7	Φ2.4×13m	21-23	open flow	brim	800	MBY710	7.1	115.2	without motor
