Manufacturer of Carbon Black Grinding Mill

carbon black grinding mill, 1,High Efficiency, 2,Low energy consumption, 3,High fineness,300-2500meshes, 4 Flexible adjustment - details see: https://www.machineto.com/manufacturer-of-carbon-black-grinding-mill-10314641

Condition:New	Type:roller mill	Motor Type:AC Motor	Power(W):120
Capacity(t/h):0.5-4.5	Place of Origin:Shanghai China (Mainland)	Brand Name:Clirik	Model Number:HGM80
Dimension(LWH):13.946.2	Certification:CE	Warranty:One year	After-sales Service Provided:Engineers available to service machinery overseas
Powder(kw):11/18.5-22/45

Features of carbon black grinding mill

High Efficiency

Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

Fine Powder Pulverizing Mill of High Fineness that Hot Selling in 2012

High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.

Application of carbon black grinding mill

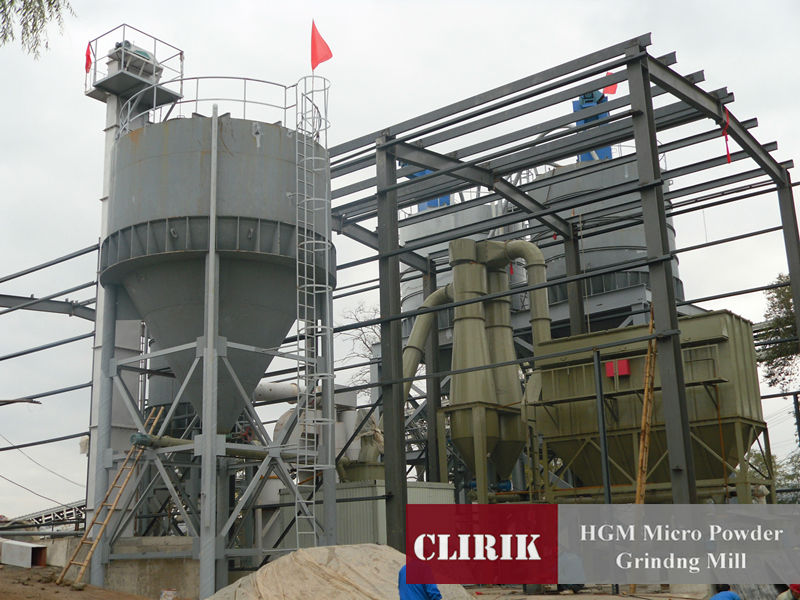

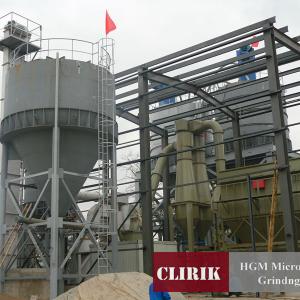

HGM Series Micro Powder Grinding Mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite,fluorite,rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Main Specification of carbon black grinding mill

Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035	1035	1300
Ring Number(layer)	3	3-4	3	4	4
Roller Number (piece)	21	24-32	27	34-36	40-44
Main Shaft Speed (r.p.m.)	230-240	200-220	180-200	180-200	135-155
Input Size(mm)	≤20
Finished Size (μm/mesh)	5-47 (325-2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	0.8 -8.5	0.9-12
Overall Dimension (LWH, m)	13.9x4x6.2	14.7x4.8x7.2	18x4.6x8.6	18x4.6x8.6	14x9x10.25
Motor Power(KW)	145-165	175-192	263	263	378-408

Note: Any changes of technical data shall not be prior advised.

Table 2:

Installed power specification for the whole set equipment

Unit:KW	HGM80	HGM90	HGM100	HGM100A	HGM125
Main unit	55	2-37	110		160
Classifier	18.5	22	37		45
Blower	45	55	75		2-55
Crusher	11	11/18.5	18.5		18.5
Bucket elevator	3	3	3		4
Spiral Conveyor	3	3	3		2-4
Discharging valve	2-0.75	2-0.75	3-0.75		4-0.75
Air compressor	7.5	15	15		2-15

Remarks:For the data with prefix such as “2-xx”, it means there are two motors configured for one item. For example, discharging valve, HGM80 with configuration 2-0.75, it means there are 2 pieces of 0.75KW motors installed with discharging valve.
