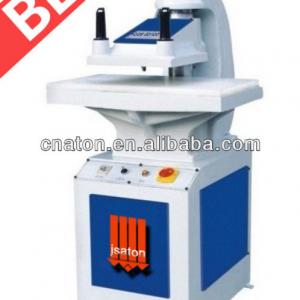

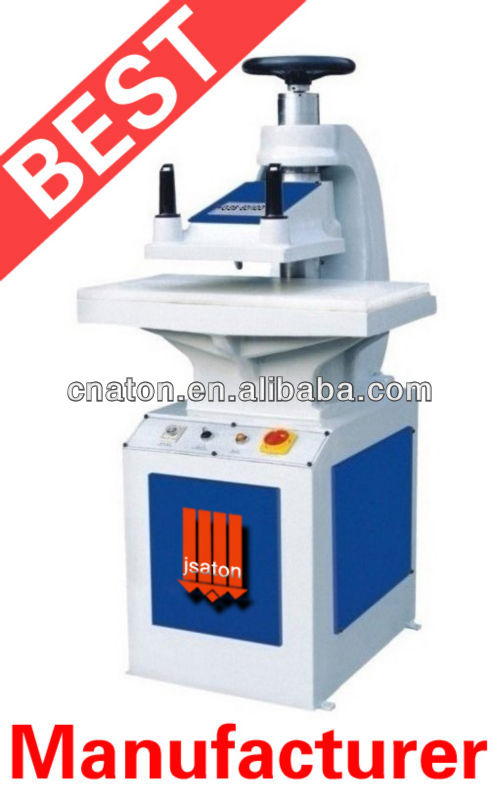

manual swing beam die cutting press machine for fabric,JSAT
Condition:New | Automatic Grade:Semi-Automatic | Place of Origin:Jiangsu China (Mainland) | Brand Name:jsaton |
Model Number:JSAT-80/120/160 | Type:Cutting Machine,hydraulic swing arm cutting machine | Voltage:380V/220V,50/60 Hz | Power(W):0.75KW |
Dimension(L*W*H):680x820x1600mm | Weight:550KG | Warranty:one year | After-sales Service Provided:Engineers available to service machinery overseas |
color:red,dark green and meet customers' need | function:wide, cutting of various nonmetal materials by die cutter |
manual swing beam die cutting press machine for fabric,JSAT
use and character:
.Specially designedoil system, can easily adjust the height of the swing arm, after change cutter height, you do not need to make any adjustments.
.Effortless operation, simple, low failure rate, and nontraditional cutting machine noise, less failure, easy maintenance.
.Upper and lower countertops smooth precision, each cutting point force.
.Adopting electronic timer control stroke lower limit position, easy access to the best cutting position, high precision, fast speed, and low energy consumption.
.Rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials and high efficiency.
.Special material cutting head has lubrication system and prolong life, and the best cutting results.
.Can use doublesided sharp cutting knife, saving the cost of labor and die cutter and pad.
.Taking advantage of hand wheel to adjust the swing arm subtalar cutting stroke, adjusting operation smoothly and easily.
.The hands button before cutting, and avoid continuing abuse, high security.
Yancheng Atong CNC Machinery Co.,Ltd isthe leading manufacturer specialized in designing and manufacturing different kinds of cutting machines with the experience of several years.Products have passed international quality certificate ISO9001 and European Union CE qualification. Customer Satisfaction is our service tenet, we warmly welcome your coming and visit.
model | JSAT-100 |
cutting Force | 10T |
sway arm width | 280x370mm |
stroke adjustment | 5-95mm |
platen to table distance | 60-120mm |
area of work table | 350x650mm |
electrical Supply | 3x440/415/400/380/220/200V, 50/60 Hz single 240/220V, 50/60 Hz |
motor power | 0.75KW |
over dimension | 680×820×1600mm |
packing size | 780x920x1700mm |
N.W(without hydraulic oil) | about 550kg |
G.W | about 580kg |
package | wood case |
Packaging Detail:wood case or meet customer's need |
Delivery Detail:within 20 days after order confirm |
