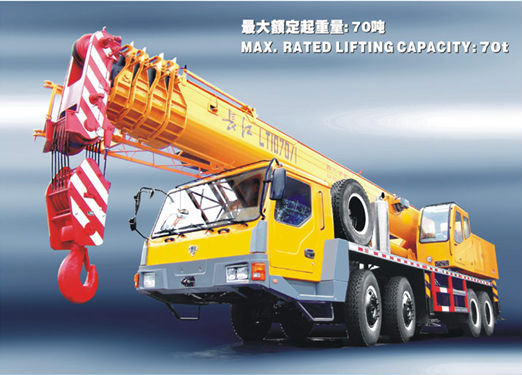

LT1070-1 70 ton changjiang terex truck crane @DEALER PRICE!
TEREX CHANGJIANG 70 ton mobile crane LT1070-1, ONE-STOP SHOP for UR Order!, 24hrs CALL SERVICE, +86 15000044418 - details see: https://www.machineto.com/lt1070-1-70-ton-changjiang-terex-truck-crane-dealer-price-10104879
| Feature:Truck Crane | Condition:New | Application:construction | Rated Loading Capacity:25-200t |
| Rated Lifting Moment:call for info | Max. Lifting Load:25-200t | Max. Lifting Height:38 meters plus | Span:call for info |
| Place of Origin:China (Mainland) | Brand Name:changjiang | Model Number:lt | Certification:ce |
| Warranty:1 year | After-sales Service Provided:Overseas service center available |
| Technical Description | Changjiang | |
| LT1025/2 | ||
| Max. Capacity | t | 25 |
| Min. Working Radius | m | 3 |
| Tail swing radius | mm | 3450 |
| Max. Load Moment | kN.m | 948.15 |
| Outtriger span - Longitudinal | m | 5.03 |
| Outtriger span - Horizontal | m | 6 |
| Max. lifting height -Basic boom | m | 10.55 |
| Max. lifting height -Main boom | m | 31.97 |
| Max. lifting height -Boom + Jibs | m | 40.45 |
| Boom length - Basic boom | m | 10.61 |
| Boom length - Main boom | m | 32.3 |
| Boom length - Boom + Jibs | m | 40.3 |
| Hoist derricking speed - raise up | s | 50 |
| Hoist extend speed - fully extended | s | 50 |
| Slewing speed | r/min | 2 |
| Main hoist - Max. rope speed - 3rd layer | m/min | 140 |
| Auxiliary hoist - Max. rope speed - 3rd layer | m/min | 130 |
| Total length | mm | 12560 |
| Total width | mm | 2500 |
| Total height | mm | 3600 |
| Wheel base - 1/2 | mm | 4225 |
| Wheel base - 2/3 | mm | 1350 |
| Travelling weight | kg | 28600 |
| Front axle load | kg | 6160 |
| Rear axle load | kg | 22440 |
| Engine rated output | kW/(r/min) | 176/2500 |
| Engine rated torque | N.m/(r/min) | 810/1400~1500 |
| Driving speed - max | km/h | 77 |
| Min. turning radius | m | 22 |
| Ground clearance | mm | 281 |
| Approach angle | ° | 18.1 |
| Departure angle | ° | 12.7 |
| Braking distance at 30km/h | m | <9.5 |
| Gradeability - max | % | 28 |
| Fuel consumption - 100km | L | 35 |
36 t lifting capacity at 3 m radius, most simple and robust truck crane made in China.
55 t lifting capacity at 3 m radius, most simple and robust truck crane made in China.
| Technical Description | Changjiang | |
| LT1055/2 | ||
| Max. Capacity | t | 55 |
| Min. Working Radius | m | 3 |
| Tail swing radius | mm | 3982 |
| Max. Load Moment | kN.m | 1764 |
| Outtriger span - Longitudinal | m | 5.5 |
| Outtriger span - Horizontal | m | 7.2 |
| Max. lifting height -Basic boom | m | 10.94 |
| Max. lifting height -Main boom | m | 40.88 |
| Max. lifting height -Boom + Jibs | m | 55.79 |
| Boom length - Basic boom | m | 11 |
| Boom length - Main boom | m | 41 |
| Boom length - Boom + Jibs | m | 56 |
| Hoist derricking speed - raise up | s | 65 |
| Hoist extend speed - fully extended | s | 115 |
| Slewing speed | r/min | 1.77 |
| Main hoist - Max. rope speed - 3rd layer | m/min | 115 |
| Auxiliary hoist - Max. rope speed - 3rd layer | m/min | 115 |
| Total length | mm | 13300 |
| Total width | mm | 2750 |
| Total height | mm | 3685 |
| Wheel base - 1/2 | mm | 1450 |
| Wheel base - 2/3 | mm | 3950 |
| Wheel base - 3/4 | mm | 1350 |
| Travelling weight | kg | 42200 |
| Front axle load | kg | 17000 |
| Rear axle load | kg | 25200 |
| Upper engine rated output | kW/(r/min) | 132/2200 |
| Upper engine rated torque | N.m/(r/min) | 750/1300 |
| Carrier engine rated output | kW/(r/min) | 247/2200 |
| Carrier engine rated torque | N.m/(r/min) | 1250/1200~1600 |
| Driving speed - max | km/h | 75 |
| Min. turning radius | m | 24 |
| Ground clearance | mm | 280 |
| Approach angle | ° | 17.5 |
| Departure angle | ° | 13.5 |
| Braking distance at 30km/h | m | 10 |
| Gradeability - max | % | 32 |
| Fuel consumption - 100km | L | 46 |
SUPPLY NEW&USED TADANO CRANE 7-200 TON
| Packaging Detail:BULK,RO/RO,AIR CARGO,EXPRESS |
| Delivery Detail:5 DAYS UPON RECEIVED DEPOSIT |
