Lowest Price Gold Wet Grinding Mill 0086 13523413118

The wet grinding mill is used for chosing gold., Features of wet grinding mill:1.manufacturer, 2.low price, 3.high quanlity - details see: https://www.machineto.com/lowest-price-gold-wet-grinding-mill-0086-13523413118-10313954
Condition:NewType:wet grinding millMotor Type:AC MotorPower(W):different model different
Capacity(t/h):different model differentPlace of Origin:Henan China (Mainland)Brand Name:MCModel Number:850,900,1100,1200,1400,1600
Dimension(L*W*H):different model differentWeight:different model differentCertification:ISO9001:2008Warranty:12months for spare parts free changed and lifetime after sale service
After-sales Service Provided:Engineers available to service machinery overseasCertificate:ISO9001:2008Used for:separate gold,sliver,lead,zince,iron,molybdenum, and so onModel:850,900,1000,1100,1200,1400,1600
Motor:China brand or as requestMax.input size:25mmInstallation:under the seller engineer's guideGuarantee:12 months for spare parts and lifetime after-sale service
keyword:wet grinding mill
Lowest Price Gold Wet Grinding Mill 0086 13523413118
contact supplier for Lowest Price Gold Wet Grinding Mill 0086 13523413118

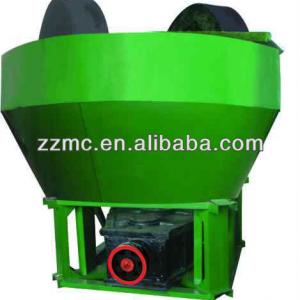

Wet Grinding Mill for Grinding Gold

1.Wet grinding Mill Application

The wet grinding mill is mainly used for separating gold,sliver,lead,zinc,iron,molybdenum,copper,antioumy and so on.It is the excellent equipment which can instead of ball mill.Wet pan mill is perfect equipment for mediunsized and small enterprises.

2.Wet Grinding MillFeatures

1.Low inverstment,

2.High production capacity,

3.low consumption,

4.good efficiency,

5.easy installation and maintenace.

3.Wet Grinding MillTechnical parameters

Model120011001000900850
Roller Diameter(mm)1200+ 101100+101000+10900+10850+10
Pan Diameter (mm)1800+201800+201800+201700+201700+20
Pan Diameter Slot Width (mm)15001400130012001100
Pan Thickness(mm)100-80100-80100-8060-4560-45
Roller Speed(rpm)

For gold 10-13 others 18-22

10-1310-13
Daily Capacity(tpd)Gold 10Gold 8Gold 5Gold 3Gold 2
Power(kw)7.55.55.533
Input Size(mm)

<25mm

4.Wet Grinding Mill Structure

5.Wet Grinding Mill Operation and Maintenance

ü The raw material should be put into the machine after the machine running normally.

ü This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.

ü The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.

ü The bearing part should be add butter regularly.

ü Every bolts should be checked to avoid flexible.

ü The bearing should be changed in time if it is damaged to avoid damage other parts.

ü While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.

ü The motor V-belt should be removed while examine and repair the machine for your safe.

Lowest Price Gold Wet Grinding Mill 0086 13523413118
Packaging Detail:containers
Delivery Detail:2-16 days or as request
