liquid measuring instrument, for biscuit factory
1.measure water, oil, syrup,etc, 2.high precision, guarantee quantity, 3.SIEMENS control, 4.Patent - details see: https://www.machineto.com/liquid-measuring-instrument-for-biscuit-factory-10056664
| Type:Filling Machine | Condition:New | Application:Food,Beverage,water, oil, syrup, etc | Packaging Type:Case,PLYWOOD CASE |
| Packaging Material:Wood | Automatic Grade:Automatic | Driven Type:Electric | Voltage:220V/ 380V,220v/ 380v |
| Power:2.2 KW,2.2 kw | Place of Origin:Guangdong China (Mainland) | Brand Name:Kendy | Model Number:W6 |
| Dimension(L*W*H):900*700*1300 | Weight:140/160 kg | Certification:Patent, CE (if need) | After-sales Service Provided:Engineers available to service machinery overseas |
| function:measure liquid, water, oil, syrup, etc | Flow:40kg water, 50kg oil within 1 minute | Customized:Yes | Machine dimension:900*700*1300 mm, small |
| Frequency:50h / 60hz | Control:SIEMENS PLC | Operation:SIEMENS touch screen | Guarantee:1 year |
Liquid Measuring Instrument (bisucit factory's brother)
About liquid measuring instrument
Liquid measuring instrument is specially designed for biscuit factory.
This machine connects with liquid tank and mixers by tubes, it measure the liquid, including water, oil, syrup, etc.
After measuring, it fill liquid into tanks automatically.
Up till now (year of 2013), this patented product has been in market for 6 years.
It is serving hundreds of biscuit factories.
Features
- High precision of 99% to 99.5%
- High eficiency of 40kg water /min and 50kg oil/min (standard type machine)
- Strong compatibility. One machine both measure oil and water
- Easy operation. Touch screen make every data setting easy and convenient
- One machine for 6 mixers
- Mini-print inside makes everything data clearly
- Palm oil will not get solid in low temperature because of the attemperator function
- Direct controlled by SIEMENS PLC, which is stable and strong anti-jamming

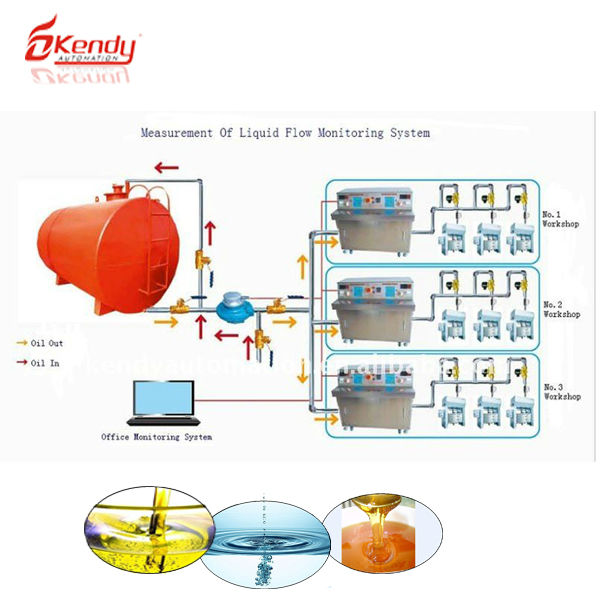

About Working Process
Technical Parameter
| 1 | Model | W6 |
| 2 | Precision | 99% - 99.5% |
| 3 | Weight | 140 - 160 kg |
| 4 | Flow | 40kg water/min, oil 50kg/min |
| 5 | Power | 2.2 kw |
| 6 | Dimension | 900 * 695 * 1287 mm |
| 7 | Voltage | 220v/ 380v |
Machine Details
SIEMENS PLC control
* SIEMENS touch screen
* Pump
* Mini-printer
* Temparature controller
* Waste tray
Trading Process
We ensure we can definitely offer you the most qualified machinery and the best service!
| Packaging Detail:PLYWOOD case |
| Delivery Detail:within 25 days |
