1) liquid homogenizer, 2) high automatic and reliable, 3) CE&ISO9001 - details see: https://www.machineto.com/liquid-high-pressure-homogenizer-10001312

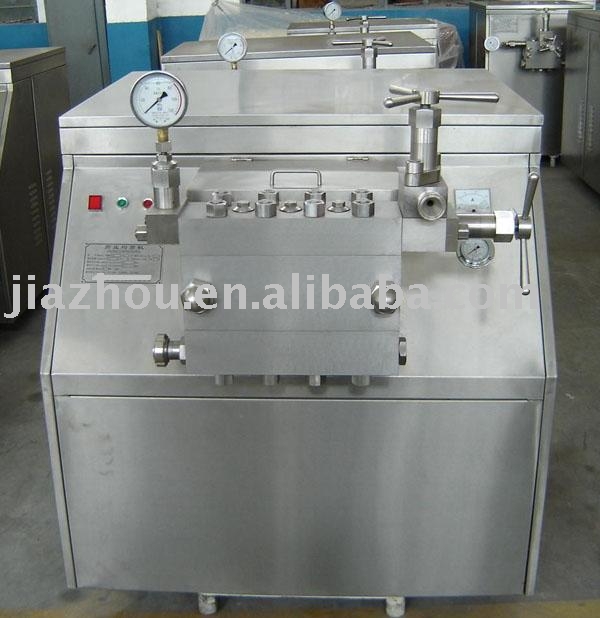

GBJ Stretch High Pressure Homogenization Pump is a widely used device for homogenization of liquid and materials or the formation of high pressure spray.It is widely used in the fields of dairy product,drinks,edible chemical medicine and biological technology.The material and liquid is homogenized under high pressure so as to reduce the delamination and increase the pureness,looseeness of the material and liquid to improve the quality of mixture.

Model	Working Pressure(MPa)	Flow(L/h)	Motor Power	Weight(kg)	Dimension(m)
GJB0.5-25	25	500	5.5	450	1.3*0.95*1.1
GJB1-25	25	1000	7.5	75.	1.3*0.95*1.2
GJB1.5-25	25	1500	11	800	1.3*0.95*1.2
GJB2.5-25	25	2500	18.5	1250	1.6*1.1*1.55
GJB3-25	25	3000	22	1300	1.6*1.1*1.55
GJB4-25	25	4000	37	1500	1.7*1.2*1.6
GJB5-25	25	5000	45	1600	1.7*1.2*1.6
GJB0.5-40	40	500	7.5	800	1.3*0.95*1.1
GJB1-40	40	1000	18.5	1200	1.6*1.1*1.5
GJB1.5-40	40	1500	22	1250	1.6*1.1*1.5
GJB2-40	40	2000	30	1300	1.6*1.2*1.5
GJB1-60	60	1000	22	1500	1.5*1*1.5
GJB1.5-60	60	1500	30	1800	1.6*1.1*1.5
RP9E15	20	3000	22	1250	1.8*1.2*1.4
RP9E9	21	800	7.5	750	1.3*0.8*1
3WRE	18	1500	11	1000	1.3*1.1*1.4
