Limestone Powder Making Machine, limestone stone grinding machine

Limestone Powder Making Machine,limestone stone grinding machine, 1Capacity:0.5-12 t/h, 2High fineness:325-2500 mesh/47-5 micon - details see: https://www.machineto.com/limestone-powder-making-machine-limestone-stone-grinding-machine-10314270

Condition:New	Type:Grinding mill	Motor Type:AC Motor	Power(W):137-375kw
Capacity(t/h):0.5-12 t/h	Place of Origin:Shanghai China (Mainland)	Brand Name:Clirik	Model Number:HGM10027
Dimension(LWH):184.68.6d m	Weight:31 tons	Certification:CE &ISO90001	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Final Powder Size:325-2500 mesh

Application

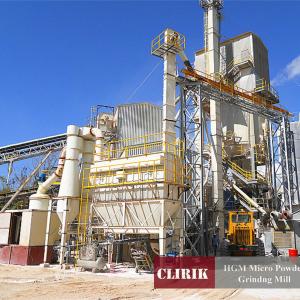

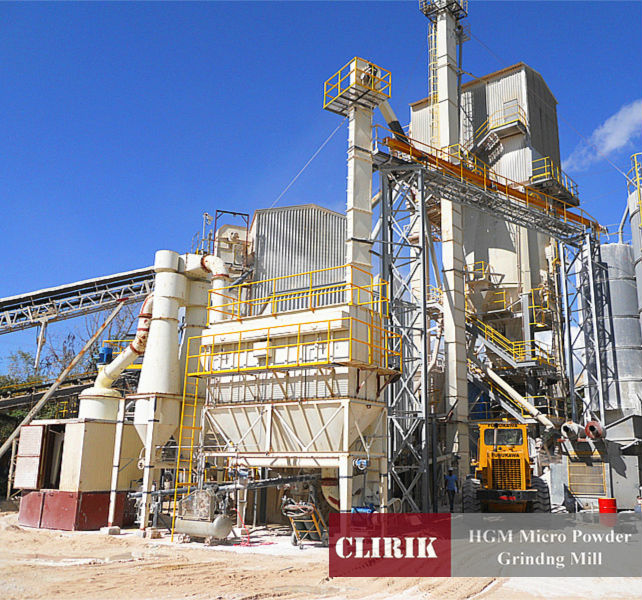

HGM Series Micro Powder Grinding Mill is the equipment specializing in producing fine and superfine powder of noninflammable, nonexplosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials. The granularity of the final powder is 47-5 micron(0.044-0.005mm).

Components of the grinding machine

It mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

Working principle

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.

When the grinding mill is at work, the main bearing and each dial are driven by electromotor of main equipment through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. Then the materials fall into multiple layers and to be crushed and ground continuously to micro powder.

The highpressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose highspeed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected highpressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.

Main Specification

Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035	1035	1300
Ring Number(layer)	3	3-4	3	4	4
Roller Number (piece)	21	24-32	27	34-36	40-44
Main Shaft Speed (r.p.m.)	230-240	200-220	180-200	180-200	135-155
Input Size(mm)	≤20
Finished Size (μm/mesh)	5-47 (325-2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	0.8 -8.5	0.9-12
Overall Dimension (LWH, m)	13.9x4x6.2	14.7x4.8x7.2	18x4.6x8.6	18x4.6x8.6	14x9x10.25
Motor Power(KW)	145-165	175-192	263	263	378-408
