1.Wet And Dry Ball Mill:, 2.Large grinding capacity;, 3.Manganese steel liner plates;, 4.Lifetime guarantee bearings;, 5.ISO9001 - details see: https://www.machineto.com/lifetime-service-ball-mill-with-iso-and-sgs-certification-10314263

China Top Manufacturer Of Ball Mill

Contact Windy +0086-13526578789

1. Energy-saving Mill Machine, Ball Mill's Brief Introduction:

Energy-Saving Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing

the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually

between 4 to 20 revolutions per minute, depending upon the diameter of the mill.

2.Ball Mill's Application:

Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the

particlesize of 20 to 75 microns. The ball mill is used to grind many kinds of mine and other

materials, or toselect the mine. It is widely used in building material, chemical industry,etc.

Ball mill's liner plates

3.Ball Mill's Features:

1) It is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine

3) Ball mill is widely used in building material and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

Ceramic Grinding Balls

4.Ball Mill's Working Principle:

The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The

materials are transferred to the grinding chamber through the quill shaft uniformly. There are

ladder liner and ripple lineranddifferent specifications of steel ballsin the chamber.The

centrifugal force caused byrotation of barrelbrings the steel balls to a certain heightand impact

and grind the materials.

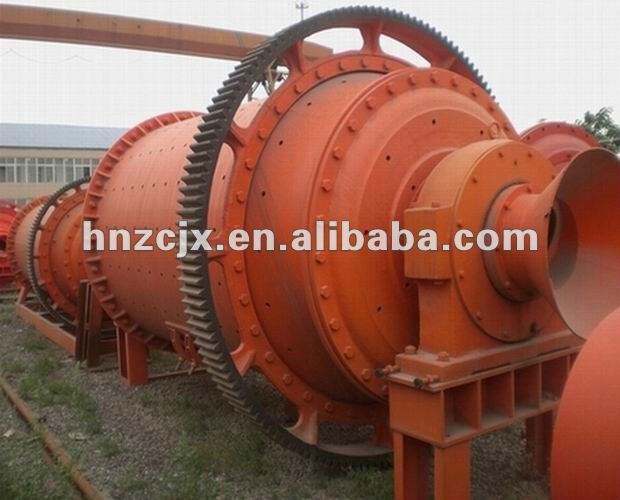

Ball Mill for Gold Ore Grinding

5.Technical specifications of ball mill:

Type	Feeding size(mm)	Discharging size(mm)	Output(t/h)	Motor power(kw)	Weight(kg)
GMZY900×2100	≤15	0.75-0.83	0.7-3.5	15	3900
GMZY1200×2800	≤25	0.075-0.6	2-6	37	13000
GMZY1500×3500	≤25	0.075-0.4	3.5-12	75	17500
GMZY1830×3600	≤25	0.075-0.4	5-22	130	33500
GMZY2100×3600	≤25	0.075-0.4	15-36	210	46800
GMZY2400×3000	≤25	0.075-0.4	22-44	245	59000

High Quality, Good Price as well as Excellent After-sales Serviceare our sincere Promise to our clients!
