LFJS high effiency ball mill manufacturers
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):1-20KW |
| Capacity(t/h):1-100KG | Place of Origin:HUN,CHANGSHA China (Mainland) China (Mainland) | Brand Name:LFJS | Model Number:0.4-100L |
| Dimension(L*W*H):600*580*800 | Weight:100-300KG | Certification:CE | Warranty:1 years |
| After-sales Service Provided:Engineers available to service machinery overseas | application:fine grinding | standard:CE,ISO | color:white,gray,accept customer's order |
| Power:Electronic | Usage:Horizontal planetary ball mill | Product Model:WXQM | Maximum Loading Capacity:2/3 of the capacity of milling tank |
| Promotion:low temperature planetary ball mill | Description:Planetary Ball Mill |
quality enhance the value,service to win the trust
XQM-(1-12) Planetary Ball Mill
The requisite equipment for mixing, fine grinding, small sample preparing, new product development and small volume high technology material production.
Our grinding planetary Ball Mill has small volume, complete function, high efficiency and low noise.
lab planetary ball mill is the ideal facility to acquire research samples for research institutes, universities as well as enterprise laboratories which can acquire four samples in one experiment. If mated with vacuum ball milling tanks, it can grind samples in vacuum status. The product is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Planetary ball mill machine has four ball grinding tanks installed on one turn plate. When the turn plate rotated, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement.
Planetary Ball Mill can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron.
Main Technical Specifications:
Model | Specification | Ball Milling Tank | Remarks | |
| Spec (ml, l) | Quantity (Items/Set) (Mated with a number of milling balls) | |||
| XQM-0.4L | 0.4L | 50~100ml | 4 balls | Can be equipped with 50ml vacuum ball milling tanks |
| XQM-1L | 1L | 50~250ml | 4 balls | Can be equipped with 50~100ml vacuum ball milling tanks |
| XQM-2L | 2L | 50~500ml | 4 balls | Can be equipped with 50~250ml vacuum ball milling tanks |
| XQM-4L | 4L | 50~1000ml | 4 balls | Can be equipped with 100~500ml vacuum ball milling tanks |
| XQM-8L | 8L | 0.5-2L | 4 balls | Can be equipped with250~1000ml vacuum ball milling tanks |
| XQM-12L | 12L | 1-3L | 4 balls | Can be equipped with 500~2000ml vacuum ball milling tanks |
| XQM-16L | 16L | 1-4L | 4 balls | Can be equipped with 500~3000ml vacuum ball milling tanks |
| XQM-20L | 20L | 1-5L | 4 balls | Can be equipped with 1000~4000ml vacuum ball milling tanks |
| XQM-40L | 40L | 4-10L | 4 balls | Can be equipped with 3000~9000ml vacuum ball milling tanks |
| XQM-60L | 60L | 6-15L | 4 balls | Can be equipped with 5000~13000ml vacuum ball milling tanks |
| XQM-100 | 100L | 1~25L | 4 balls | Can be equipped with 9000~20000ml vacuum ball milling tanks |

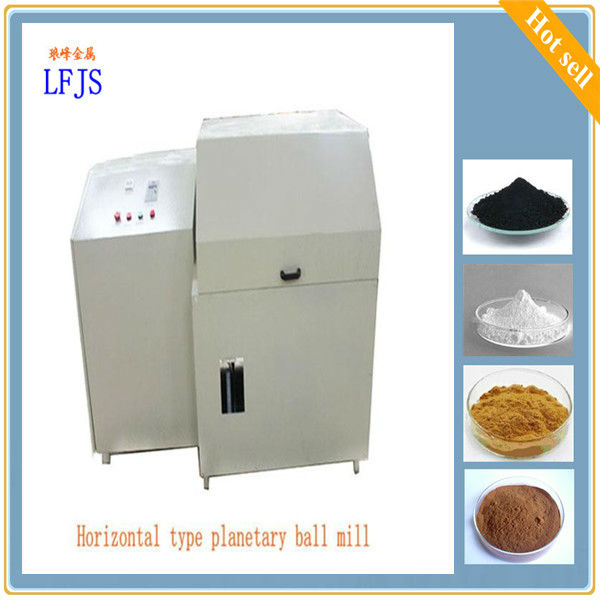

Ball mill picture

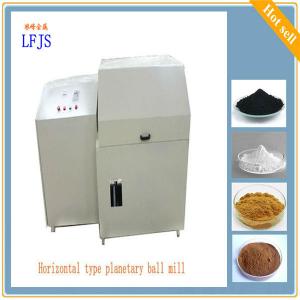

Planetary ball mill picture
Small ball mill picture
Grinding machine components drawing
front panel
Inverter control
visual window
Ball mill part
ball mill tank
ball mill tank
package and shipment
customer feedback
customer feedback
company show
safety sale service
| Packaging Detail:plywood case |
| Delivery Detail:7 work days |
