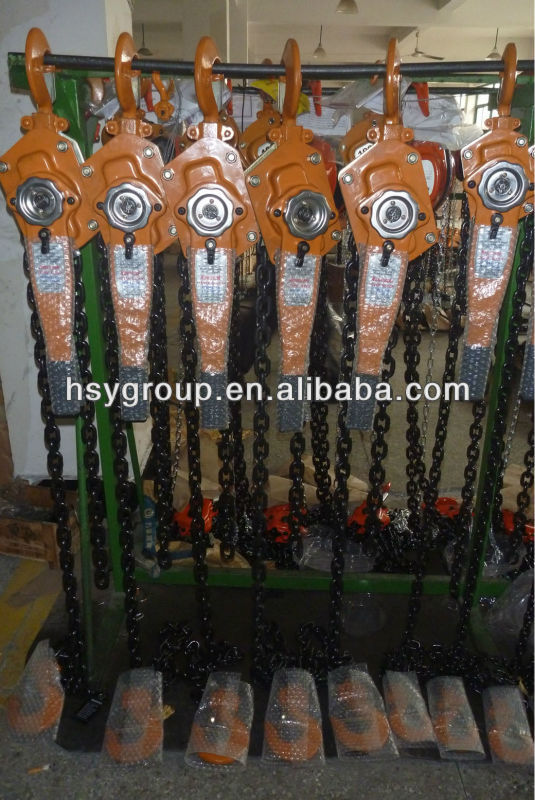

LEVER HOIST

lever hoist features:, 1.capacity: 0.25T to 9T, 2.lifting height: 1M to 1.5m, 3. CE certified, 4.ISO9002 - details see: https://www.machineto.com/lever-hoist-10099444

Feature:Floating Crane	Condition:New	Max. Lifting Height:15M	Rated Loading Capacity:9T
Max. Lifting Load:9T	Place of Origin:Zhejiang China (Mainland)	Brand Name:KAWASAKI	Model Number:VA
Certification:CE	Warranty:1YEAR	After-sales Service Provided:Overseas third-party support available

lever hoist features:

Model		VA-0.75	VA-1.5	VA-3	VA-6	VA-9
Capacity (TON)		0.75	1.5	3	6	9
Standard Lifting Height(M)		1.5	1.5	1.5	1.5	1.5
Running test load (KN)		11	22.5	37.5	75	112.5
Effort required to lift max. load (N)		140	220	320	340	360
No. of chain strand		1	1	1	2	3
Load Chain Dia.(MM)		6	8	10	10	10
Dimensions (MM)	A	145	175	203	203	203
	B	86	100	118	118	118
	C	122	130	150	205	316
	D	37	45	50	64	85
	H	320	380	480	620	700
	L	285	370	410	410	410
	K	30	, 36	40	50	58
Net.weight(KG)		7.5	11.5	21	31.5	47
Pack sized(CM)		35.5x14x16.5	46.5x15.5x19	51x19x21.5	53x22x21.5	82x32x21.5
Extra weight per meter extra lift(KG)		0.8	1.4	2.2
