laser Textile cutting or engraving machine EXLAS1410
Place of Origin:Shandong China (Mainland) | Brand Name:XYZ | Model Number:EXLAS1410 | DSP Off-line system with usb flash:optional |
Motorized up-down table:optional | Rotary attachment:optional | Red-light position:optional | Water-cooling unit:optional |

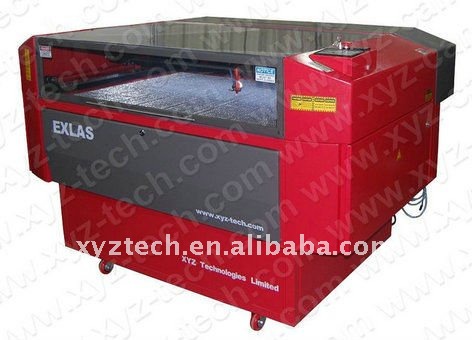

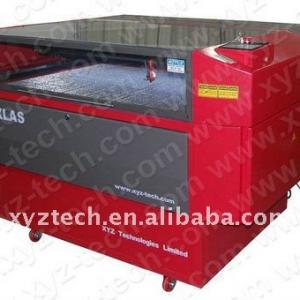

EXLAS1410 laser Textile cutting or engraving machine
Machine Description | EXLAS-1410 Laser Engraving and Cutting Machine |
Machine Performance: | |
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | 80W (100W 150w,or 180W for option) |
Cooling Mode | Circulating-water-cooling |
Power Adjustment | 0-100% controlling, no segment and adjusting by software |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Max Engraving Speed | 48000mm/min |
Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) |
Repeating Location | 0.01mm |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | 1800W |
Adjustable Up-down Distance of Laser Head | 40mm |
Working Travel Area | 1400x1000mm, 1450mm width with infinity material-feeding |
Table Area | 1450x1050mm |
Up-down Range of Working Table | Mechanical 260mm |
Working Voltage | AC220V 50Hz |
Working Environment | Temperature: 0-45oC, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
Body Dimension (LxWxH) | 2020x1480x1300mm |
Packaging Dimension (LxWxH) | 2120x1700x1450mm |
Packaging | Wooden box |
Gross Weight | 487kg |
Machine Color | Customizable |
Delivery Time | 15 days |
Payment | T/T |
Optional Equipment | Rotary attachment |
Motorized up-down table | |
Water-cooling unit | |
Red-light position | |
Vacuum table | |
DSP Off-line operation with usb flash |
fabric laser cutting machine
- thicker zinc fe alloy honeycomb working table and double-layer reinforced central platform, ensure large area cutting with high speed, stableness, precision, no scorched edge, just as small area cutting.
- particularly suitable for cutting garments fabric, plush toy fabric, car seat cushions, etc.
- single head or double head optional.
New improvements:
1 .New humanized design makes the machine body more compacted, saving working space.
2 .Improved structures enable the laser works more stable, better accuracy, lower noise.
3 .Intelligentized switch on door opening and closing, when you open the door, the machine stop beaming and travelling, you can resume working manually or by closing the top door.
4 .Intelligentized thermostat and water flowing switch to protect the laser tube, when the temperature goes above a certain point(can be fixed), the laser will pause and resume till temperature get normal, when there is no water flowing, the switch will close and machine stop working. This can enable the laser tube lifespan be extended.
5. LED Lamp also fixed, with long lifespan and safe position.
application
garments fabric, textile, cloth, toy fabric, leather, etc.
Packaging Detail:plywood case |
Delivery Detail:7 Days |
