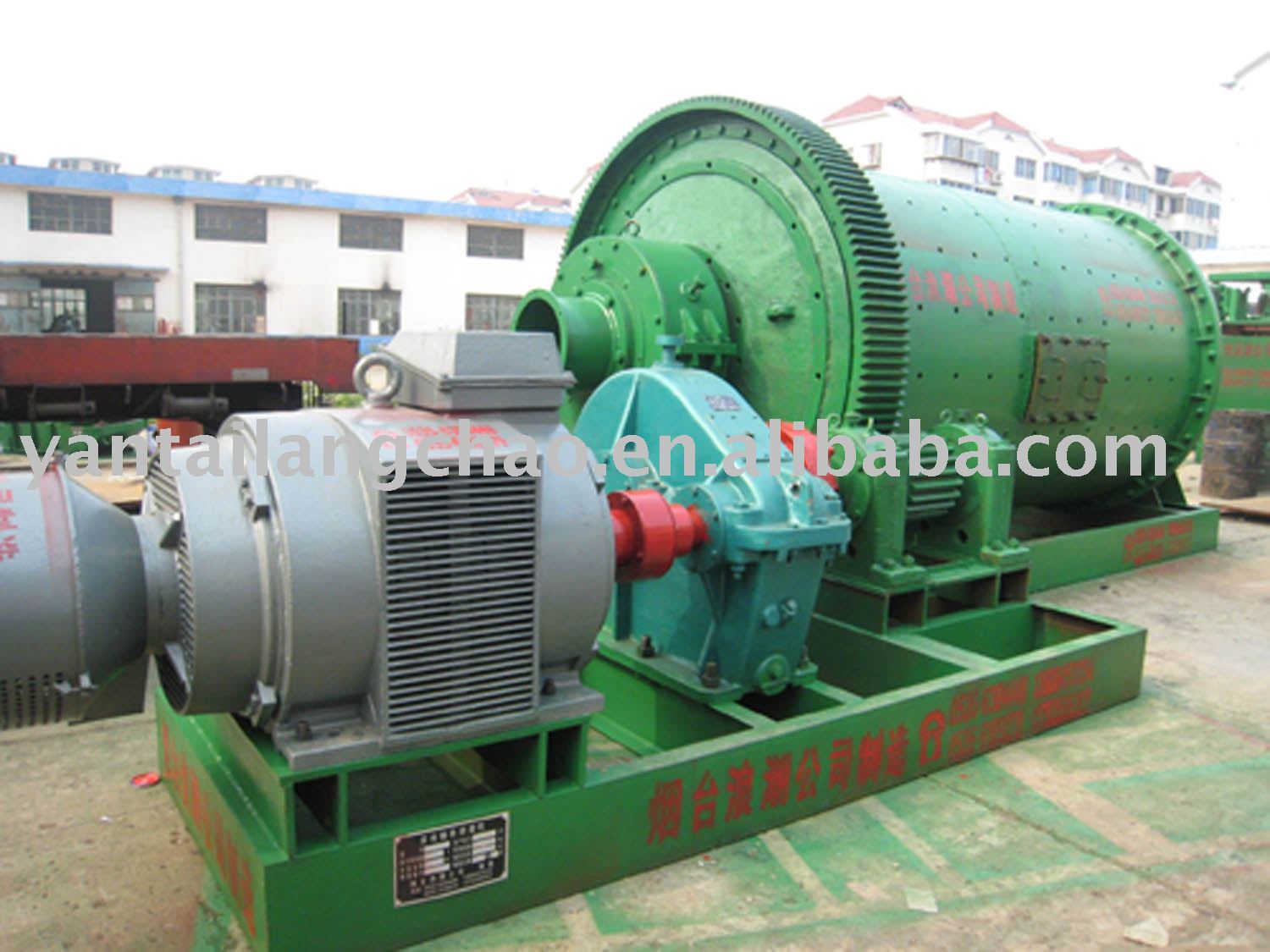

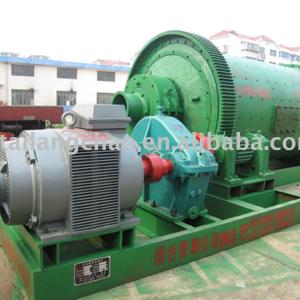

Lang Chao Ball Mill

Lang Chao ball mill:, 1.roller bearing, 2. energy saving 20-30%, 3.outstanding milling effect. - details see: https://www.machineto.com/lang-chao-ball-mill-10313911

Condition:New	Type:Ball Mill,Mill	Capacity(t/h):3.8-8	Place of Origin:Shandong China (Mainland)
Brand Name:Langchao	Model Number:1500*3000	Application:Ore	Diameter:1500
Length:30000	Effective volume:5.0m³	Color:green, red etc.

contact supplier for Lang Chao Ball Mill

Features of Langchao ball mill

Double-row self-aligning spherical roller bearing replaces babbit-lined
bearing. Friction resistance is greatly lowered down, easy to start and 20-30%
of energy is saved.
Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.
All-in-one frame is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.

Parameter of Langchao cylindrical shaped energy saving overflow ball mill with roller bearing:

Model	Cylinder Diameter*Lengthmm	Revolutionr/min	Effective volumem³	Max load of ballst	Capacityt/h	Power		W t
Model	Cylinder Diameter*Lengthmm	Revolutionr/min	Effective volumem³	Max load of ballst	Capacityt/h	Motor	Modelkw	W t
MQYJ0909	900*900	41.57	0.45	0.9	0.22-1.07	Y160L-6	11	4.2
MQYJ0918	900*1800	41.57	0.9	1.92	0.44-2.14	Y180L-6	15	5.5
MQYJ1216	1200*1600	35.5	1.5	2.5	0.4-6.2	Y225M-6	30	9.2
MQYJ1228	1200*2800	35.5	2.6	4.3	0.35-8.2	Y280M-6	55	11.5
MQYJ1515	1500*1500	28	2.2	3.6	1. 4-4. 5	YR280S-8	55	12
MQYJ1524	1500*2400	28	3.6	5.6	2.2-7.2	Y315M-8	75	14.5
MQYJ1530	1500*3000	30.5	5	8.6	3.8-8	YR280M-8J	80	19.5
MQYJ1536	1500*3600	30.5	5.4	9.6	4.8-10	YR315S-8J	95	22.5
MQYJ1551	1500*5100	27.6	7.7	12.5	4.8-12	JR126-8	110	25
MQYJ1557	1500*5700	27.6	8.7	14.6	5-15	YR315M2-8J	130	26.5
MQYJ1830	1800*3000	25.7	5.6	9.6	6-9	JR127-8	130	26.3
MQYJ1836	1800*3600	25.7	6.7	11.5	6.5-11	JR127-8	130	28.3
MQYJ1840	1800*4000	25.7	7.4	12.7	7-11	JR128-8	135	30.7
MQYJ1844	1800*4400	25.7	9.0	15	7.5-11.5	JR128-8	155	32
MQYJ2430	2400*3000	24	11.4	22	7.2-90	JR1410-8	280	68.9
