1,long life, 2,running is stable, 3,Advanced equipment, 4,And efficiency in good faith - details see: https://www.machineto.com/laminated-glass-production-line-10084953

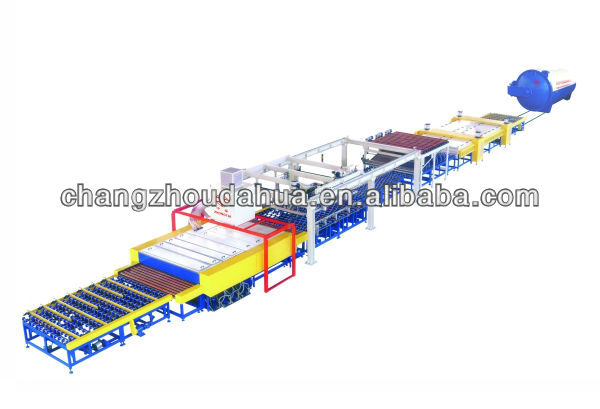

FULL-AUTOMATIC PVB LAMINATED GLASS PRODUCTION LINE

*Including following sections:

1,Semi-automatic glass loading machine,

2,glass cleaning and drying machine,

3,electrical glass laminator,

4,glass transition table,

5,electrical PVB film shelf

6,roller pre-pressing machine(or roller pre-pressing machine for both and curve glass)

7,convection glass autoclave,

8,semi-automatic unloading machine,

9,air compressor(includes cooling and drying machine,tertiary filter),air tank, laminate room, AC etc.

PARAMENTER OF THE LINE:

Regular glass size:2440×3660mm

Min length of processing glass: 420mm

Min width of processing glass: 300mm

Thickness range of processing: 4~80mm

Total length: appro.42800mm

Current supply: 380V, 50Hz, 3Ph

Total power: appro.160.07Kw

*Feature:

The whole line is centralized controlled by industrial computer assisted in PLC and monitor display/operation.

Washing and drying machine is the core equipment of the whole line.

In the laminating room the laminating table, Automatic suction hanger , assembling table, PVB unwinding machine with film rolls driven by motor, Automatic suction hunger, convenient for processing of large and big glasses.

Pre-laminating and press section has reasonable structure and informal opening program.

The integrity is controlled in laminating room with its stable running function.

Speed regulation is frequency variable.

Auto-clave is a specialized machine for production of laminated, anti-bullet and anti-bombing glass. This machine will melt the PVB film and combined two layers or more than two layers glass by high temperature and high pressure.
