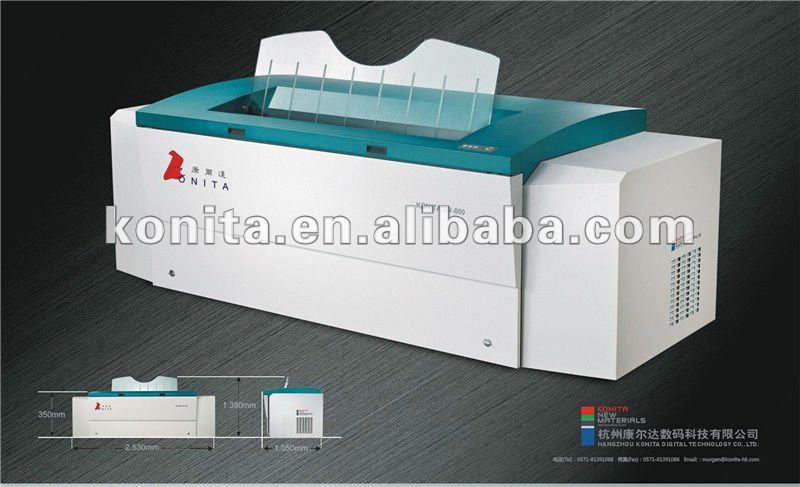

Konita UV- CTP platesetter
DDS Frequency Multiplication and Drum's Automatic Balance;Accurate Graphic Size Calibration;Dynamic autofocusing - details see: https://www.machineto.com/konita-uv-ctp-platesetter-10072677
| Condition:New | Type:Image Setter | Automatic Grade:Automatic | Place of Origin:China (Mainland) |
| Brand Name:Konita | Model Number:KONITA UV--800F |
| Model | KONITA UV—400 E |
| Exposing Method | External Drum |
| Imaging System | 24—channel Discrete 405 nm laser diode |
| Throughput | 19 plates per hour 800mmx660mm 2400dpi |
| Plate Size | Max.800mmx660mm,Min.400mmx300mm |
| Exposing Size | Max.800mmx646mm,Min.400mmx284mm |
| Media Type | UV plate (sensitivity≤ 75MJ/cm2) |
| Plate Thickness | 0.15mm to 0.30mm |
| Resolutions | 2400dpi |
| Repeatablity | ±5µm (Continuous exposing for four times or above on the same plate with temperature of 23°Cand humidity of 60%) |
| Interface | USB 2.0 |
| Plate Loading | Semi automatic |
| Weight | 800 KG |
| Size (WxDxH) | 1900mmx1200mmx1000mm(WxDxH) |
| Power Supply | Single-phase:220AC,+6%,-10%,Power Consumption:4KW |
| Environment | Recommended:21-25°C,Max.18-26°C,humidity:40-70% |
| Packaging Detail:export packing |
| Delivery Detail:30 days |
