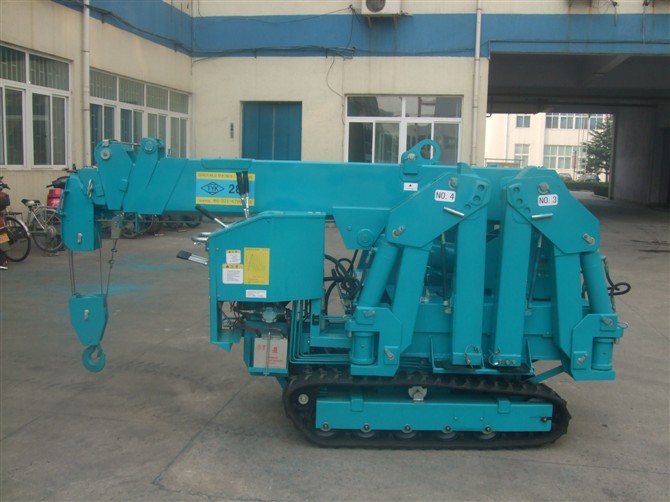

KB3.0 Mini Crawler Crane
our product has been sold to many countries ,and won Good evaluation - details see: https://www.machineto.com/kb3-0-mini-crawler-crane-10101542
| Feature:Other,Track Crane | Condition:New | Rated Loading Capacity:3T | Max. Lifting Load:3.5T |
| Max. Lifting Height:9.2m | Span:8.3m | Place of Origin:Henan China (Mainland) | Brand Name:KEBU |
| Model Number:KB3.0 |
Model | KB3.0 | |
Specification | 3.0T×1.3m | |
Max operation radius | 8.3m | |
Max Raising height | 9.2m | |
Winding | Hook up speed | 2.5m/min (4 times) |
| The diameter and length of wire rope | 8mm×50m | |
Telescopic | Jib form | 5 parts (Full-automatic) |
| Jib Length | 9 m | |
| Up and down | Jib angle | 0-75° |
| Rotary | Rotation angle | 360-degree continuous rotation |
Outrigger | The form of outrigger | First part automatic regulation,Second part manual regulation |
| Maximum extend range | 4.3m×5.4m | |
Walking device | Walking style | Mechanical(3 drive 1 revert) |
| Walking speed | 1.4Km/h | |
| Crawler | synthetic rubber | |
| Grade ability | 20° | |
| Ground pressure | 37Kpa | |
Hydraulic oil tank volume | 26L | |
Dimension(L.W.H) | 2850x760x1450(mm) | |
Machine Weight | 1800Kg | |
Gasoline Engine | Model | GX390(HONDA) |
| Engine maximum output power | 13HP | |
| Ignition system | Transistor ignition magnets(Non contacting) | |
| Packaging Detail:20' CONTAINER |
| Delivery Detail:35 days |
Related Product for KB3.0 Mini Crawler Crane
Spider Crane with High Quality
The devices are small collapsible legs for easy mobility.
Hydraulic Fixed Boom Marine Crane
1) Running smoothly.2) Rates of speed can be changed.
3) 360 degrees rotary.
4) Both electro hydraulic and manual to control
Gantry Crane for Ship Yard
1.heavy loading2.nice appearance.
3.high working efficiency
4.good manipulate performance

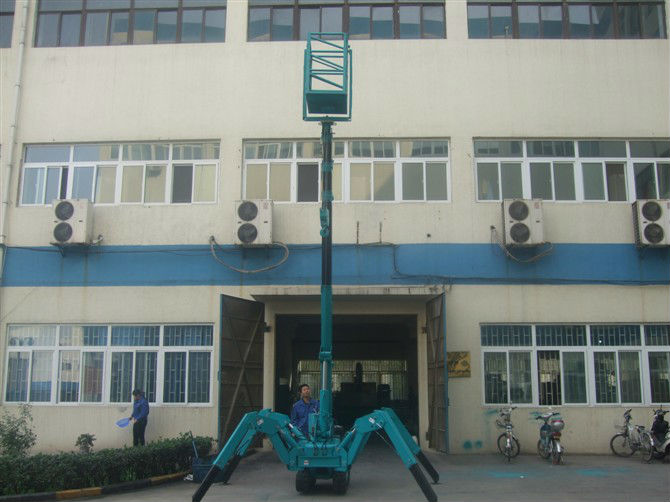

9.2M 3.0 Ton 360degree Spider Lift widely used with Remote Control
