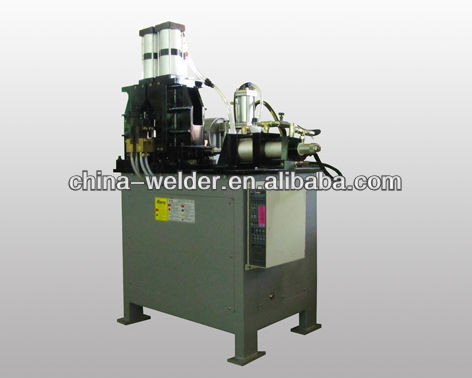

juntengfa UN-200KVA professional auto pipe butt welding machine

1.CCC,CE, 2.flash butt welding machine, 3.manufacturer, 4.high quality, 5.best after-sale service - details see: https://www.machineto.com/juntengfa-un-200kva-professional-auto-pipe-butt-welding-machine-10135492
Condition:UsedPlace of Origin:Hubei China (Mainland)Brand Name:juntengfa HORSEModel Number:UN-200KVA
Input Voltage:380vUsage:flash butt weldingCertification:ccc,ceAfter-sales Service Provided:Engineers available to service machinery overseas
Rated Capacity:UN-200KVAVoltage:380vRated frequency:50/60HZMaximum short current:35000A
Rated duty cycle:50%Maximum fastening force:8000NMaximum forging force:3000NExternal dimension:1350*800*1600MM
Weight:1450KG,1450kg
juntengfa UN-200KVA professional auto pipe butt welding machine
contact supplier for juntengfa UN-200KVA professional auto pipe butt welding machine


juntengfa UN-100KVA professional auto pipe butt welding machine

PRODUCT INTRODUCTION:

The parts to be butt welded are pneumatically and hydraulically controlled to provide an even flash contract at the contact edges. Initially the power is turned on and progressively increased to remove oxidants and residues. The end surfaces of the parts to be welded are heated to plastic stage through a regulated power supply. Upset forging force is then applied to make the end surfaces to get flushed and welded. The machine designed to provide the high welding strength to the welded component. There is no false jont, resdue and air bubble in the point of welding.

The machine is widely used in the butt welding of handles of kitchen utensils such as knife, folk, spoon and spatula, as well as the welding of hardware products such as round pipes, square pipes, roudsteel. flat iron, bicycle wheel rims, motor wheel rim, etc.

FEATURES:

1.By integration of electromechanical, hydraulic and pneumatic design,the warming up, flashing and upset forging process are optimized to have best result.

2.The microprocessor regulates the process has 5 Programs to choose from, for various application.

PRIMARY TECHNICAL PARAMETERS:

ltem

Model

Rated capacityRated primary voltageRated frequencyMaximum short currentRated duty cycleMaximum fastening forceMaximum forging forceExternal dimensionWeight
KVAVHzA%NNmmKg
UN-505038050/60190005039001500900×800×1200350
UN-757538050/60235005061002500900×800×1200400
UN-10010038050/60260005061002500900×800×1200435
UN-15015038050/603100050800030001350×800×16001350
UN-20020038050/603500050800030001350×800×16001450

ABOUT US:

EXHIBITION:

juntengfa UN-200KVA professional auto pipe butt welding machine
Packaging Detail:Standard export packaging
Delivery Detail:25 days
